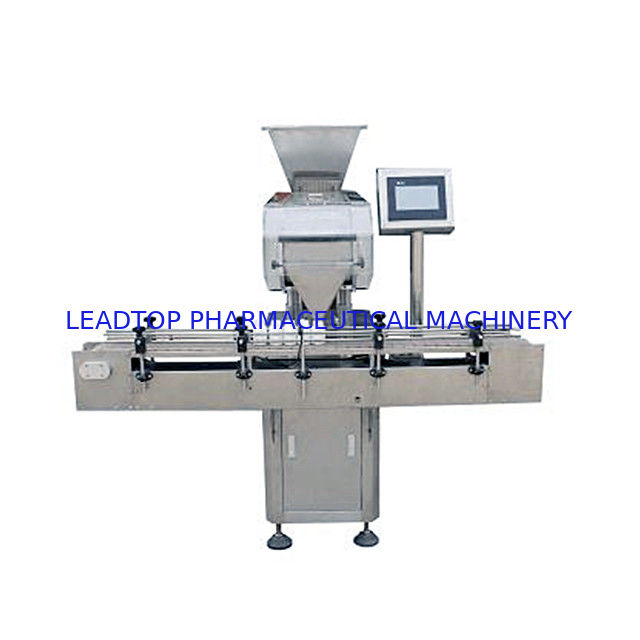

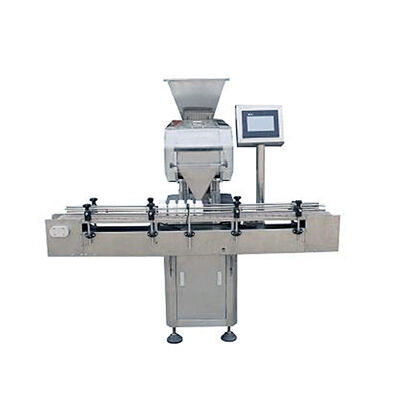

Durable Electronic Tablet Counting Machine , Capsule Counting And Filling Machine

Durable Electronic Tablet Counting Machine , Capsule Counting And Filling Machine

pill counting machine

capsule counting machine

Place of Origin:

China

Brand Name:

LTPM China

Certification:

CE, GMP, SGS, BV

Model Number:

LTEC-16

Contact Us

Request A Quote
Product Details
Model:
LTEC-16
Usage:
Capsule,tablets,gums,rubber,etc.
Power:
220v 50hz Single Phase
Transmission:
Electronic
Capacity:
200000pcs/h
Brand:
LeadTop
Line Length:
Optional
Product Description



Electronic Tablet Capsule Counting And Filling Machine

Working Principle

Electronic counting machine (wide three grade)

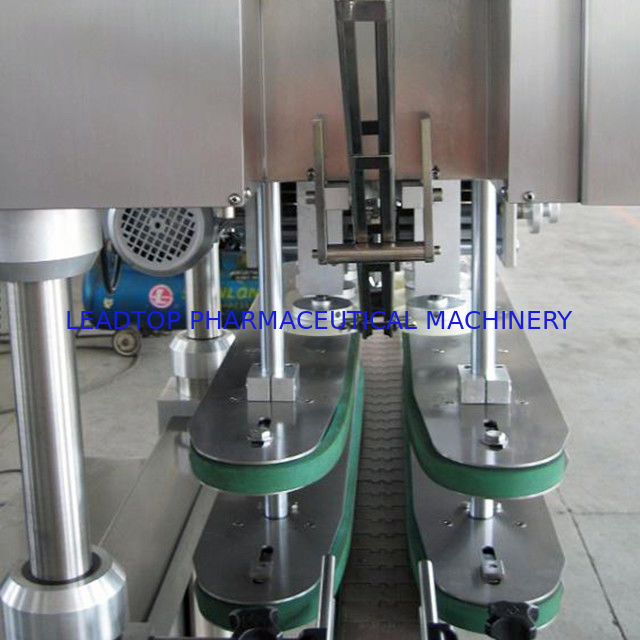

The bottle stopper device on the bottle feeding rail of the conveying bottle mechanism will block the bottle conveyed from the upper device and stop at the bottling position, waiting for filling. The medicine enters the medicine chamber through the vibration of the feeding corrugated board, and the counting photoelectric sensor is installed on the medicine chamber. The medicine falling into the medicine chamber is quantitatively counted by the photoelectric counting sensor and then loaded into the bottle in the bottling position.

Main Feature

(1) It has strong compatibility, and can count and bottle solid preparations or solid particles such as tablets (including shaped tablets), capsules, soft capsules (transparent, opaque), pills;

(2) Vibrating blanking: 24 channels of vibration uniform feeding, special patented laminating mechanism, material discharge, uniform and stable discharge, no damage to drugs;

(3) Anti-high dust: It adopts the company's original anti-high dust photoelectric sensor technology, which can work stably in the case of high dust;

(4) Accurate counting: photoelectric sensor automatically counts, the bottling error is less than the national standard;

(5) The special structure of the leaking nozzle can prevent the drug from being blocked, and the small bottle with the bottle mouth can also be quickly bottled (optional)

(6) High degree of intelligence, with multiple detection and alarm control functions such as no bottle count, fault self-test;

(7) Function matching: automatic detection of bottleless photoelectric sensor, automatic shutdown

(8) Simple operation: intelligent design, various operating parameters are set as needed

(9) Convenient maintenance: the operator can operate with simple training, and it is simple and convenient to disassemble, clean and replace parts, without tools

(10) Sealed and dustproof: Configure the dust box to reduce dust pollution (optional).

Main Specifications

Electronic counting machine (wide channel , three step vibration)

Applicable bottle type: round, square plastic bottle

Filling the object: 000~5# capsule, soft capsule, Φ5.5~25 plain tablets, shaped tablets, sugar-coated tablets, Φ3~25 pills

Production capacity: 20 ~ 90 bottles / minute (related to bottle specifications, loading, drug specifications)

Bottle capacity setting range: 2-9999

Power and power: AC220V 50Hz 1.5kw

Accuracy: >99.5% (better than industry standards)

Air source: 0.6Mpa

Dimensions: 1760 * 1650* 1650mm

Weight: 580kg

Main configuration List

NO. Name Manufacturer
1 Motor TQG (Taiwan)
2 Look at the bottle photoelectric eye Matsushita, Japan
3 Counting light head Taiwanese billion light
4 Pneumatic Components Shanghai Star
5 Emergency stop switch Schneider
6 HMI Taiwanese Delta
7 Master chip Imported British ARM Electronics
8 Switching power supply Schneider
