LTEC -16 Automatic Tablet Counter , Pharmacy Pill Counter Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | LTPM China |
| Certification: | CE, GMP, SGS, BV |
| Model Number: | LTEC-16 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Export Standard Wooden Case |
| Delivery Time: | 25days |
| Payment Terms: | T/T,L/C,D/P |
| Supply Ability: | 15sets/month |
|
Detail Information |
|||
| Model: | LTEC-16 | Usage: | Capsule,tablets,gums,rubber,etc. |
|---|---|---|---|
| Power: | 220v 50hz Single Phase | Transmission: | Electronic |
| Capacity: | 200000pcs/h | Brand: | LeadTop |
| Line Length: | Optional | ||
| High Light: | pill counting machine,capsule counting machine |
||
Product Description

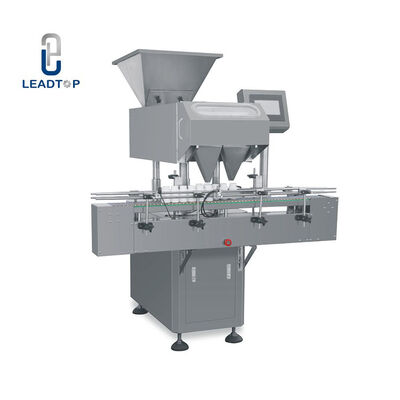

LTEC -16 Automatic Tablet Counter , Pharmacy Pill Counter Machine
LTEC-16 Automatic Tablet Capsule counting Machine
for American Health Products Cod Liver Oil
Product Description:
LTEC-Series Automatic Electronic counting machine is special for counting tablets, soft gelatin, hard capsule and chewing gums, Cod liver oil,etc. This machine adopts 16 sets imported counting sensor for counting with 16 Guiding Way and two head. The advantage of the machine is no need change mould when you change the counting object, only adjusting the counting table height by Easy Adjust wheel. The machine comes with Touch screen operation control for convenient running.
Feature:
1. Compatibility, high accuracy, wide application and use of the Company's original anti-dust photoelectric detection of high technology, can count Tablets (including special-shaped tablets), capsules, soft capsules (transparent, opaque), pill count to bottling;
2. Vibratory cutting drugs do not damage;
3. A high degree of intelligence, with no bottle is not the number of self-fault detection alarm and many other control functions;
4. Compact structure, stability and durability, and no regular replacement parts, small footprint, the use of low-cost;
5. To facilitate the replacement of species, can automatically take-off and landing, demolition cleared without any tools, convenient and quick;
6. Chinese dialogue control panel, can store 10 ~ 20 group of species parameters, adjusted to facilitate the use of special;
7. Fully automatic operation, with the Upper and Lower Union Road, intelligent control of processes, coordination, and no special operation, labor-saving devices.
8. Low prices, especially for small-volume, variety and more manufacturers use.
9. Control chip imported to the United States, photoelectric sensors for Taiwan's imports.
Technical Parameters:
|
Model Name
|
LTEC-16
|
|
Application
|
1. Hard capsules(00-5#)
2. Soft Gelatin capsules
3. Tablets
4. Chewing gums
5. Other solid object under machine range
|
|
Hopper Volume
|
40L
|
|
Capacity
|
40-60bottles/min
|
|
Filling Quantity
|
1-9999pcs/bottle (adjustable)
|
|
Bottle Size
|
Diameter: 30-75mm
Height:40-250mm
|
|
Counting Size
|
Thickness: 3-10mm
Diameter: 3-15mm
Length: 3-25mm
|
|
Compressed air
|
0.5Mpa
|
|
Conveyor Belt Length
|
2400mm
|
|
Machine Weight
|
650kg
|
|
Machine Size L × W × H (mm)
|
2000 × 1700 × 1900
|
