Place of Origin:
China
Brand Name:
LTPM China
Certification:
CE
Model Number:
LTSP-15
Contact Us
High Purity Hemp Cannabis Essential Oil Short Path Molecular Distillation Equipment
LTPM CHINA molecular distillation, also called molecular distiller, it is a process of separation, purification and concentration of natural products, complex and thermally sensitive molecules for example vitamins and polyunsaturated fatty acids.
Advantages of LTPM CHINA Instrument:
(1) The molecular distillation vacuum is high, the operating temperature is low and the heating time is short. for the separation od material with high boiling point , heat sensitive and easy to oxidize, It can be an excellent guarantee of the natural quality of the material.It has been widely used in the extraction of natural substances.
(2) Molecular distillation can not only effectively remove low-molecular substances in the liquid, such as: organic solvents, odor, etc., But alsp selectively evaporate the target product, remove other impurities,.So It is considered a natural quality of the protector and return The
(3) Molecular distillation can achieve the physical process which traditional separation method can not achieve.Therefore, on the separation of some high-value materials is widely used as deodorization, decolorization and purification means.
Technical data:
| Turnkey Solution for Stainless Steel Molecular Distillation | ||||||||
| Model | LTSP-1 | LTSP-2 | LTSP-5 | LTSP-10 | LTSP-15 | LTSP-20 | LTSP-30 | LTSP-50 |
| Evaporation Area m2 | 0.1 | 0.2 | 0.5 | 1 | 1.5 | 2 | 3 | 5 |
| Feeding Rate L/h | 1-15 | 5-25 | 10-60 | 50-120 | 60-180 | 100-200 | 100-300 | 200-500 |
| Feeding Method | High-precision gear pump | |||||||
| Receiving Method | Continuous discharge pump | |||||||
| Equipment Height(mm) | 2100 | 2650 | 3100 | 4250 | 4500 | 5000 | 6200 | 7500 |
| Max Speed(rpm) | 50-350 | |||||||
| Operation Temperature |
Up to 350C |
|||||||
| Vacuum Level(mbar) | Low to 0.001 mbar | |||||||
| Feeding Mode | Gear pump for automatic and continuous feeding | |||||||
| Collection Mode | Gear pump for automatic and continuous collection | |||||||

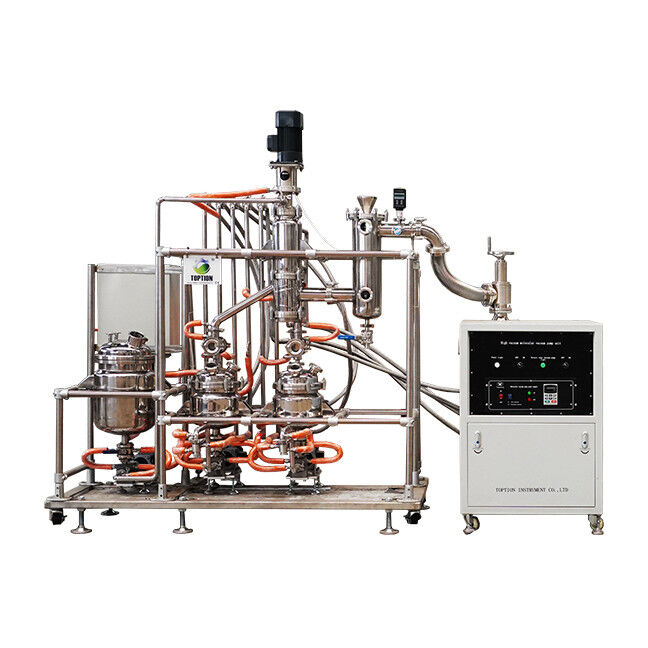

LTPM CHINA Instrument develop stainless steel wiped film molecular distillation based on customer's production needs. Its efficient productivity can help customers save costs to the the greatest extent
1. Modularized design for flexible options
2. Continuous feeding & collection modules design, saving labor cost and working time
3. Fully jacketed design, wide applications for different materials
4. SUS316L stainless steel, safe and reliable
5. Sight glass and quick connect design, easy to disassemble and clean
