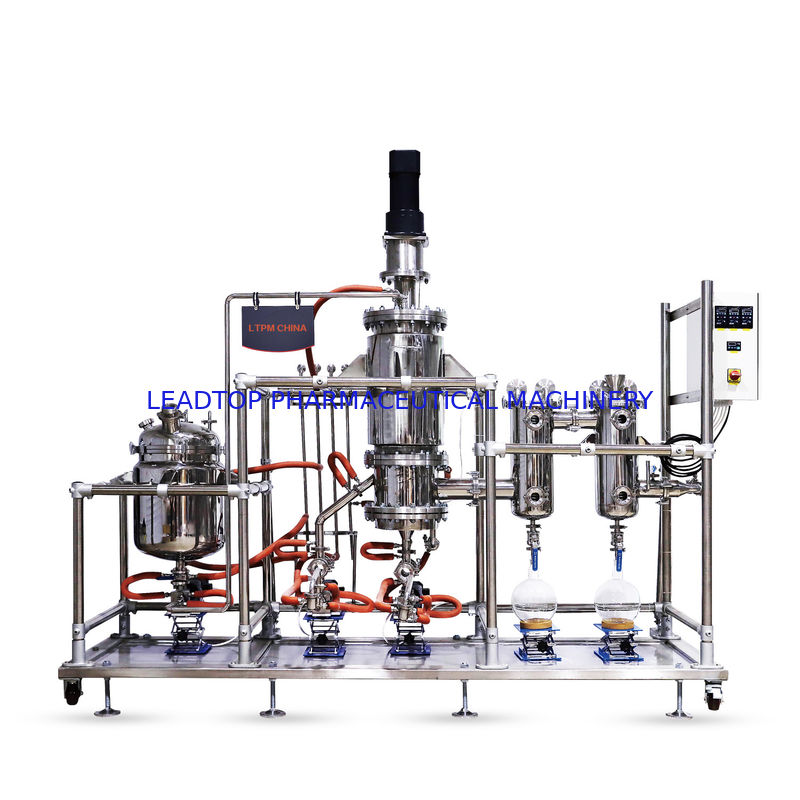

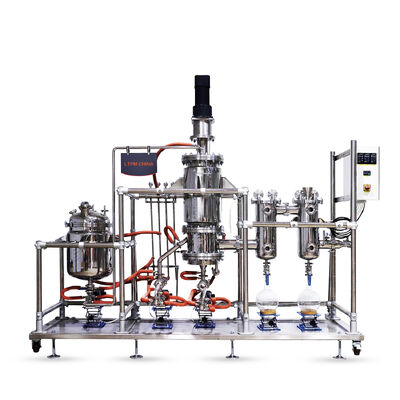

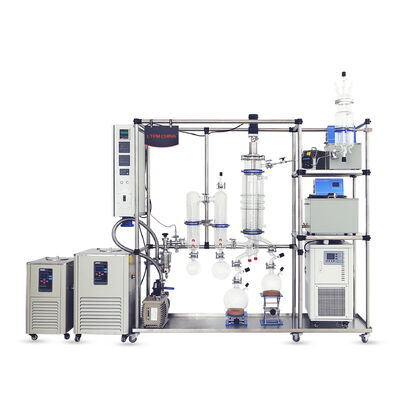

Automatic Herb Extraction Equipment Hemp Oil Short Path Distillation Machine

Automatic Herb Extraction Equipment Hemp Oil Short Path Distillation Machine

herbal extraction equipment

concentration machine

Place of Origin:

China

Brand Name:

LTPM China

Certification:

CE

Model Number:

LTSP-50

Contact Us

Request A Quote
Product Details
Evaporation Area M2:
5
Feeding Rate L/h:
200-500
Feeding Method:
High-precision Gear Pump
Receiving Method:
Continuous Discharge Pump
Equipment Height(mm):
7500
Max Speed(rpm):
50-350
Operation Temperature:
Up To 350C
Vacuum Level(mbar):
Low To 0.001 Mbar
Feeding Mode:
Gear Pump For Automatic And Continuous Feeding
Collection Mode:
Gear Pump For Automatic And Continuous Collection
Product Description

Automatic Herb Extraction Equipment Hemp Oil Short Path Distillation Machine


Molecular Distillation is a special liquid-liquid separation technology, which is different from traditional distillation on the difference boiling point. This is a kind of distillation in high vacuum environment, for the difference of material molecular movement free path, was carried out in the heat sensitive materialor high boiing point material distillation and purification process. Short Path Distillation is mainly used in chemical, pharmaceutical, petrochemical,spices, plastics, oil and otherfields.



Automatic Herb Extraction Equipment Hemp Oil Short Path Distillation Machine 0



















































































Advantages of LTPM CHINA Instrument:

Taking advantage of molecular distillation working principle, our HGW series wiped film molecular distillation is a high efficient apparatus for distillation of thermal sensitive and high boiling points material.
1. All glass parts with excellent visibility are self-manufactured, with great flexibility in production, can be completely customized according to customer requirements.
2. Magnetic seal components are independently developed to ensure maximum vacuum in the system for efficient evaporation.
3. Short residence time so that heat sensitive substances will not deteriorate.
4. Flexible configuration options for meeting different clients' need.
5. Turnkey solution provided.
6. Engineers available overseas.

Automatic Herb Extraction Equipment Hemp Oil Short Path Distillation Machine 1





























































Technical data:

Turnkey Solution for Stainless Steel Molecular Distillation
Model LTSP-1 LTSP-2 LTSP-5 LTSP-10 LTSP-15 LTSP-20 LTSP-30 LTSP-50
Evaporation Area m2 0.1 0.2 0.5 1 1.5 2 3 5
Feeding Rate L/h 1-15 5-25 10-60 50-120 60-180 100-200 100-300 200-500
Feeding Method High-precision gear pump
Receiving Method Continuous discharge pump
Equipment Height(mm) 2100 2650 3100 4250 4500 5000 6200 7500
Max Speed(rpm) 50-350
Operation Temperature Up to 350C
Vacuum Level(mbar) Low to 0.001 mbar
Feeding Mode Gear pump for automatic and continuous feeding
Collection Mode Gear pump for automatic and continuous collection













































LTPM CHINA Instrument develop stainless steel wiped film molecular distillation based on customer's production needs. Its efficient productivity can help customers save costs to the the greatest extent

1. Modularized design for flexible options
2. Continuous feeding & collection modules design, saving labor cost and working time
3. Fully jacketed design, wide applications for different materials
4. SUS316L stainless steel, safe and reliable
5. Sight glass and quick connect design, easy to disassemble and clean
