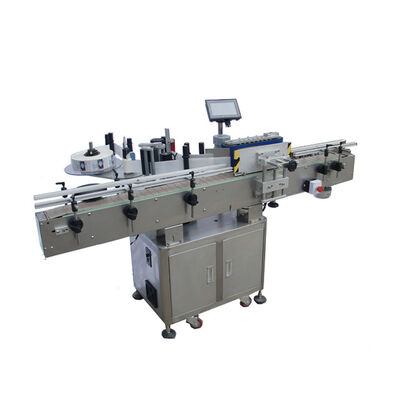

MT - 130D Auto Label Machine Carton Double Sided Seal Sticker Labeling Machine

MT - 130D Auto Label Machine Carton Double Sided Seal Sticker Labeling Machine

bottle labeler machine

self adhesive labelling machine

Place of Origin:

China

Brand Name:

LTPM China

Certification:

CE, GMP

Model Number:

MT

Contact Us

Request A Quote
Product Details
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
The Standard System:
Step Motor
Capacity:
20-130 Carton/min
Labeling Accuracy:
±1.0mm (subject To The Roughness Of The Plane)
Weight:
200kgs
Power Supply:
AC220V 50/60HZ Single Phase
Product Description



MT-130D Carton double sided seal sticker labeling machine

Device characteristics:

--Adopt mature technology PLC control system, operation is stable and high-speed.

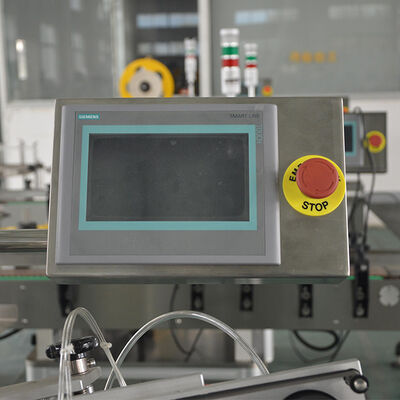

--Using touch-screen control operating system, simple and efficient.

--Upgrade new standard station design, the angle can adjust depends on different carton size.

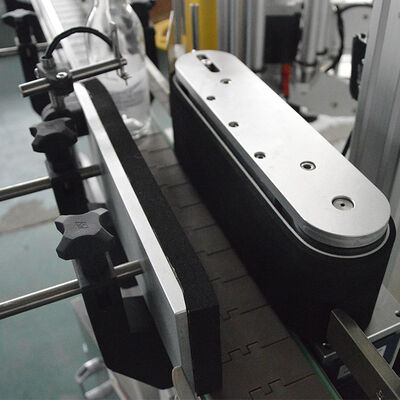

--Top press device ensure stability of carton when labeling, particularly applicable for light and small cartons.

--Combine the characteristic of light label objects, adopt Belt conveyor with High stability.



Mechanical Design:

1. Using side label method, add Press carton structure, ensure the stability of carton.

2. When the label touch the carton, the brush firm the front label, make sure the label is smooth and firm.

3. Conveyor speed can be adjust to match up the send label speed, ensure label no wrinkle.

4. The inverter control the Motor, make sure the conveyor speed,press carton speed and send label 5. speed synchronous operation, label surface is smooth and label position is accurate.

6. The durable engine and parts are solid and durable, adopt standardized modular design completely interchangeable, 24-hour operation ensure the security and stability.

7. The whole machine use S304 stainless steel and anodized senior aluminum alloy, Never rust and with high corrosion resist



Technical Parameters:

Model MT-130D
The standard system Servo Motor
Capacity 20-130 carton/min
Operating Direction Left or right
Label speed ≤35 m/min
Tags volume inner diameter 76 mm
Tags volume outer diameter 350 mm (max)
Label Specifications Glassine backing Paper , opaque label (The application of carton Can be customized according to customer’s demand)
Labeling accuracy ±1.0mm (subject to the roughness of the plane)
Weight 200KGS
Total motor power 800W
Power supply AC220V 50/60HZ Single phase
Size appearance (mm) 2200 (L) 1800 (W) 1500(H)
