Roller Type Pharmaceutical Processing Machines Capsule Blister Packing Machine

Roller Type Pharmaceutical Processing Machines Capsule Blister Packing Machine

    • Roller Type Pharmaceutical Processing Machines Capsule Blister Packing Machine
    • Roller Type Pharmaceutical Processing Machines Capsule Blister Packing Machine
  • Roller Type Pharmaceutical Processing Machines Capsule Blister Packing Machine

    Product Details:

    Place of Origin: Zhejiang,China (Mainland)
    Brand Name: LTPMChina
    Certification: CE
    Model Number: DPH-260H

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Packaging Details: Wooden packing
    Delivery Time: 30
    Payment Terms: Negotiable
    Supply Ability: 1 sets per month
    Contact Now
    Detailed Product Description
    MODEL: DPH-260H Capacity: 70-180 Cuttings/min
    Adjustable Scope Of Feed: 30-120mm Max. Forming Area: 260*280*12mm
    Overall Dimensions: 5260×1170×2150mm Power Supply: 380V 50Hz /220V 60Hz 15.5kw

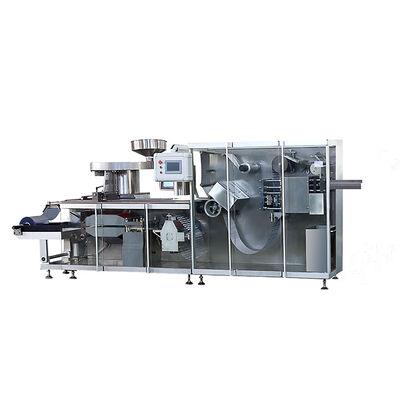

    DPH-260H Roller Type Blister Packing Machine Capsule Blistering Machine



    Product Description

    Application

    DPH260H High Speed Roller Type Blister Packing Machine is a special equipment which as blister type alu/pvc and alu/alu composite sealing packing for drugs( tablets, capsules), food, medical instrument and similar products. Due to adopt positive pressure forming, flat heat sealing, it has crisp blister, flat and level strip, etc.

    It is the new generation product elaborately researched and developed by our company. Its maximum cutting frequency can be 230 times per minute. It combines the advantages of flat type and roller type blister packaging machine, and adopts special feeder for irregular tablet, with high cutting frequency, low energy consumption, accurate action, stable and easy to change mold, high yield, and the stagger blister no horizontal waste edge cutting, highly improves the production efficiency. The machine design is more reasonable, it adopts automatic control technology which integrate frequency control and machine, electricity, light, air, and creative design strictly according to pharmaceutical industry GMP standard. Machine has the functions of fission station structure, modularization of working stations. The technique fills up the local blank, it's comprehensiveness stands for the leader and more active than the imports.





    Feature

    High efficiency, low consumption

    Easy operating

    Energy saving

    CE, ISO, GMP

    SPECIFICATIONS FOR DPH-260H BLISTER PACKING MACHINE
    Model

    DPH-260H
    Blamking Frequency
    70-180 cuttings/min
    Adjustable scope of feed travel
    30-120mm
    Max. forming Area
    260*280*12mm

    Wrapping Material Specification
    PVC: (0.2-0.5)*260mm
    PTP Alu foil: (0.02-0.05)mm
    Cold forming Alu: (0.09-0.15)*260mm
    Overall Dimensions
    5260×1170×2150mm
    Power Supply
    380V 50Hz /220V 60Hz 15.5kw
    Weight
    3000Kg



    Roller Type Pharmaceutical Processing Machines Capsule Blister Packing MachineRoller Type Pharmaceutical Processing Machines Capsule Blister Packing Machine
