High Speed Rotary Tablet Press GZPK370-26
Performance:
High quality machines are based on advanced and reasonable design. New design GZPK370 series high speed tablet press is developed on the basis of years manufacture expertise with it’s excellent standardization and modularity in series.
Main Features:
1. Design of GMP.
2. High quality all stainless steel construction.
3. Reliable overall sealing and dust-proof system.
4. High visibility isolated door to prevent cross contamination.
5. Easy remove parts for maintenance.
6. 360 degree for easy observation and cleaning.

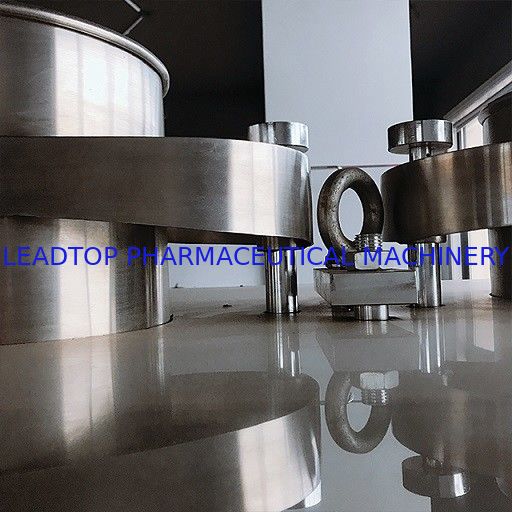

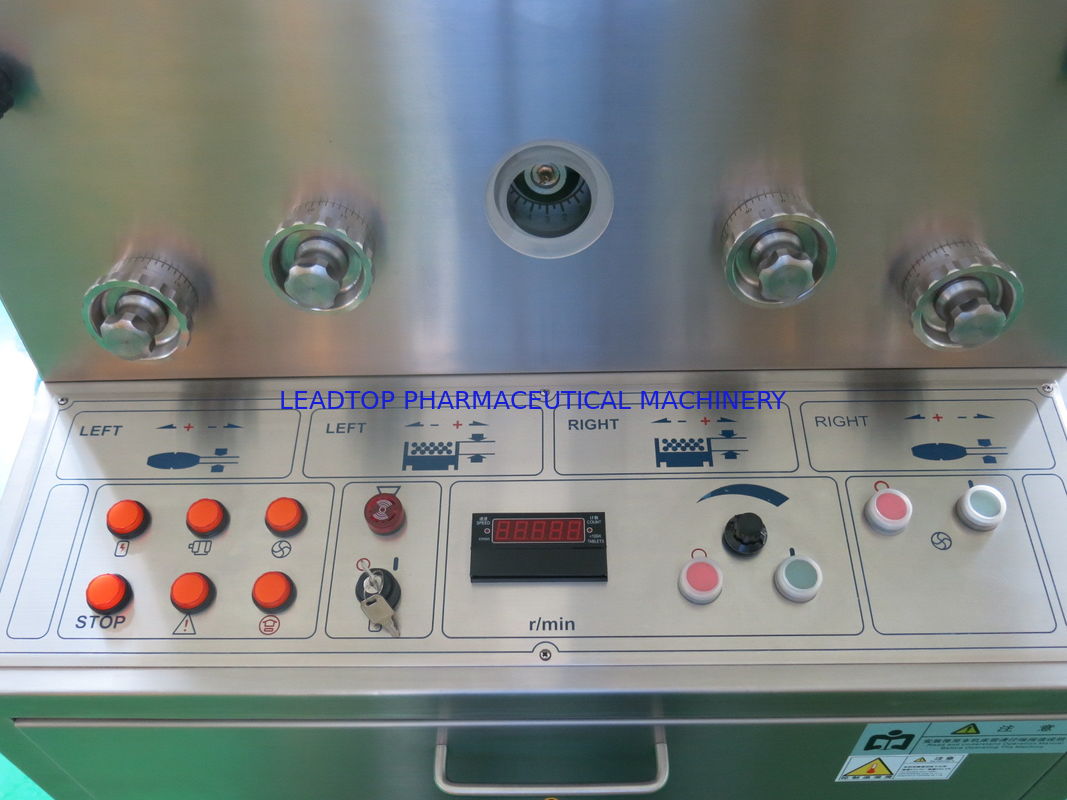

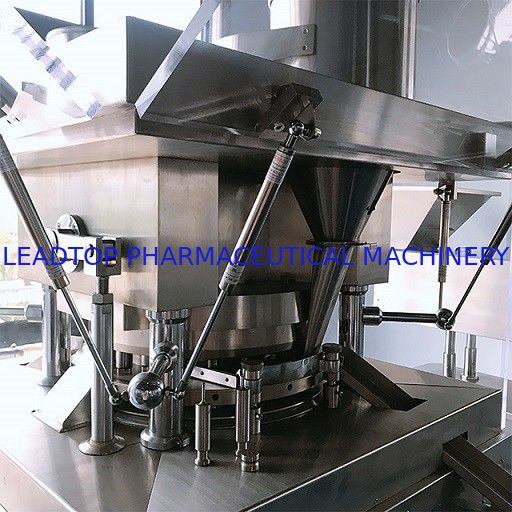

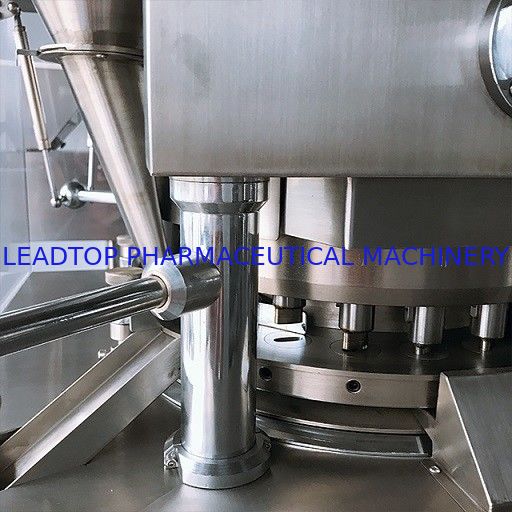

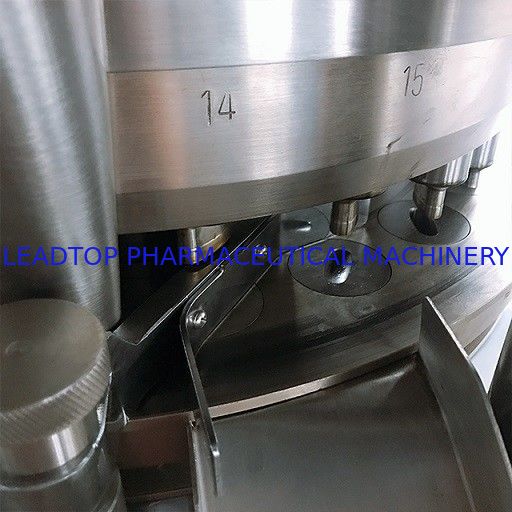

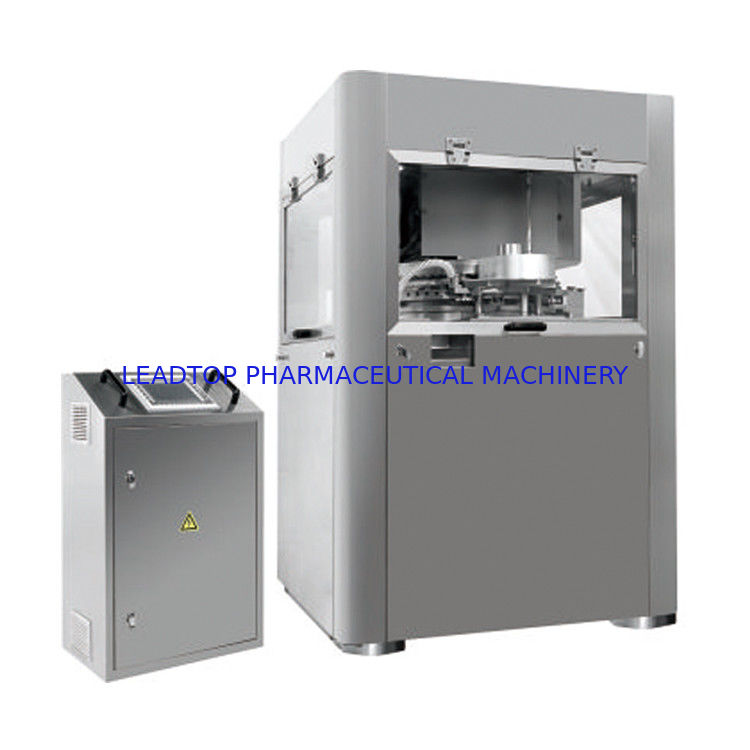

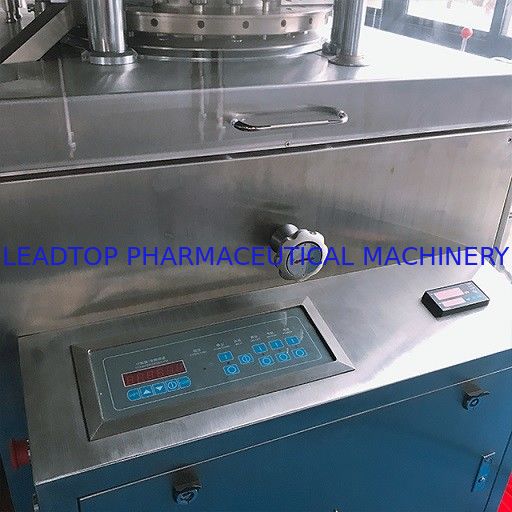

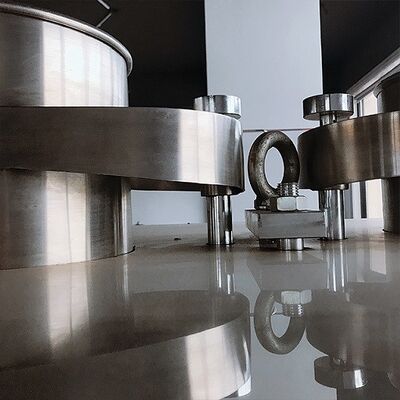

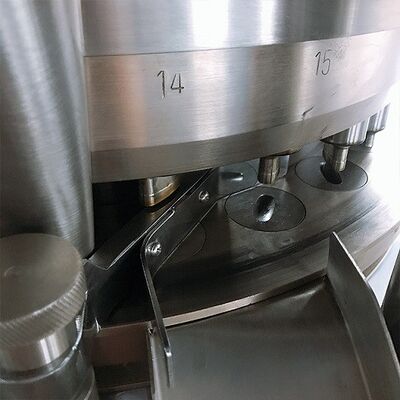

Machine Photo:
Sample We Produce:
Main Technical Data:
| Product No. | GZPK370-26 |
| Quantity of Punch & Die (set) | 26 |
| Tooling Type | D |
| Main Pre-pressure (kn) | 16 |
| Max. Pressure (kn) | 100 |
| Max. Dia. of Tablet (mm) | 25mm |
| Max. Thickness of Tablet (mm) | 1-8 |
| Max. Depth of Filling (mm) | 25 |
| Middle Die Diameter (mm) | 38.1 |
| Punch diameter (mm) | 25.35 |
| Rotation Speed (r/min) | 13-110 |
| Production Capacity (pcs/h) | 130000 |
| Voltage (v/hz) | 380/50 |
| Motor Power (kw) | 7.5 |
| Outside Size (mm) | 820×1100×1750 |
| Weight (kg) | 1600 |
Configuration List:
Our Services:
1.We have seven technicians who gets passport ready to travel all over world to offer service to you.
2.We have 24hours hot line for Technical Support.
3.We get 18hours internet line for technical support.
4.Video camera in workshop to help you adjust and solve machine problem in working situation.
