    Product Details:

    Place of Origin: China
    Brand Name: LTPM China
    Certification: CE
    Model Number: Vb-Top Series

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: Negotiation
    Packaging Details: Wooden Case
    Delivery Time: In 30 days after receiving the deposit
    Payment Terms: 30% TT as deposit and 70% before shipping
    Supply Ability: 25 sets/Month
    Contact Now
    Detailed Product Description
    Outline Dimension Diameter * L * H Mm: Φ3000*18000*4600 10layer Heating / Cooling Area M^3: 200/14
    Evaporation Capacity Kg / H: 190-210 Power KW: 55
    Vacuum Degree Pa: 1600-5000  Heating / Cooling Temp ℃: 15-30 (adjustable)

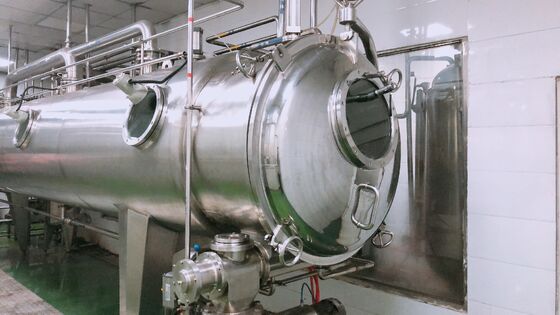

    VB-Top-Series Vacuum Belt Dryer

    Applications:
    VB-Top-Series Vacuum & low temperature belt drying machine is a type of dynamic automation drying equipment with feature of heating the liquid or solid with continuous feeding, continuous evaporation and continuous charge in vacuum environment.

    Vacuum Belt Dryer is particularly suitable for drying large-scale, high-viscosity plant extract extracts. Due to the use of non-sticky Teflon coated conveyor belts, the material is easy to peel from the conveyor belt , The entire process is completely in pipeline running, So the finished product yield is extremely high (more than 98%). Compared with the same capacity of the spray drying equipment, energy consumption is only 1/4, VB-Top-Series which USES hot water to heat, is less energy-intensive than the same kind of equipment that is heated by steam, and is now the main equipment for drying the extract of traditional Chinese medicine.

    ADVANTAGE

    1. With functions of automatic batching, automatic feed, the feed rate is adjustable, the final concentration ointment density can reach to 1.3 and solid-liquid mixtures.

    2. With vacuum degree on-line automatic adjustment function, dynamic vacuum degree can be arbitrarily set in the range 1000 ~ 5000 pa.

    3. Have function of Online automatically adjust the heating temperature, the heating temperature can be set in the range of 40 ~ 135 ℃.

    4. With continuous feeding and continuous discharge, Online crushing and grinding function, crushing level count up to 100 mesh.

    5. Conveyor belt automatic online correction function, speed adjustable, drying time is up to 72 hours continuously.

    6. The whole drying process realizes the pipe-lining and completely isolated from the external environment, to avoid heat pollution.

    7. The whole drying process realizes automation control, reduce the labor costs, all process parameters have reversible search.

    8. Use hot water closed-circuit circulation heating technology, greatly reduce the energy consumption, is only 1/5compare with the spray drier.

    9. Equipped with a full set of online automatic cleaning system, can cleaning and drying of equipment fast and test the cleaning effect.



    APPLICATION SCOPE:

    Vacuum belt dryer (VBD) for liquid&paste is mainly used in drying many kinds of liquid or paste raw material, such as traditional & western medicines, food, biological products, chemical material, health foods, food additive etc, especially suitable for drying material with high-viscosity, easy agglomeration, or thermoplastic, thermal sensitivity, or material that can not be dried by traditional dryer.

    Pharmaceutical industry:chinese medicine extract, plant extract, egg embryo, PVPK series, fermenting liquid etc



    Food industry: malt extract, carbohydrate, instant beverage, tea powder, cocoa powder, corn paste etc

    Chemical Industry:lithium battery, emamectin benzoate etc



    Main Technical Data:

    Model

    Outline dimension Diameter * L * H
    mm

    Heating / cooling area m^3

    Evaporation
    capacity
    Kg / h

    Power KW

    Vacuum degree
    Pa

    Heating / cooling temp ℃
    VB-TOP-6 Φ1000*6000*2600 2layer 5/0.36 4-6 12




    1000-3300




    40-135 (adjustable)

    VB-TOP-8 Φ1000*7500*2600 2layer 6.5/0.5 5-8 12
    VB-TOP-12 Φ1200*7500*2700 3layer 11/1.8 7-12 13
    VB-TOP-15 Φ1600*7500*2800 3layer 14/1.8 9-15 13
    VB-TOP-25 Φ1600*9000*2800 3layer 25/1.8 18-25 15
    VB-TOP-30 Φ1800*9000*2900 4layer 29/2 28-32 18
    VB-TOP-50 Φ1800*12000*2900 4layer 46/2.4 35-50 20
    VB-TOP-60 Φ1900*12000*3200 5layer 57/3 50-60 24
    VB-TOP-80 Φ2300*12000*3400 6ayer 75/3.6 70-80 28




    1600-5000




    15-30 (adjustable)

    VB-TOP-100 Φ2300*15000*3600 6layer 94/3.6 90-100 34
    VB-TOP-130 Φ2600*15000*3800 7layer 118/5 110-130 40
    VB-TOP-150 Φ2800*16500*4200 8layer 147/6.8 140-150 46
    VB-TOP-180 Φ3000*16500*4500 9layer 178/7.6 160-180 50
    VB-TOP-210 Φ3000*18000*4600 10layer 200/14 190-210 55
