Low - Noise Herb Extraction Equipment , Membrane Concentration Machine

Low - Noise Herb Extraction Equipment , Membrane Concentration Machine

concentration machine

liquid extraction equipment

Place of Origin:

China

Brand Name:

LTPM China

Certification:

CE

Model Number:

LTN Series

Contact Us

Request A Quote
Product Details
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Raw Material Input Capacity:
Ultrasonic Herb Extract Machine
Power Of Vacuum Pump:
12kw
Concentrate Density (%):
1.2-1.35
The Volume Of Extracting:
6
Raw Material Input Capacity (kg):
600-800
Product Description

Herb Extract Machine

Applications:
This multifunction extraction tank can be used in herb, plant, pharmaceuticals, food and chemical industry, water decoction, atmospheric wet leaching, heat reflux forced circulation, penetration, plant essential oils and aromatic oil extraction and organic solvent recycle in atmospheric pressure and micro pressure.
The multifunction extractor is suitable for colleges and universities, research institutes, laboratories, pharmaceutical factory etc. multi variety material and small batch production.

Advantages of Ultrafiltration Membrane Separation Equipment for Traditional Chinese Medicine Injection:
1. Ultrafiltration membranes have high rejection rates of macromolecular impurities, heat sources and bacteria, which can improve drug safety.
2. Ultrafiltration membrane filtration belongs to physical filtration without chemical reaction, and does not change the active ingredients.
3. Ultrafiltration membrane filtration belongs to cross-flow operation, and the membrane is not easily blocked.
4. Ultrafiltration membranes are imported from abroad with various qualifications, long service life and safety.
5. Choose hygienic grade material, conform to GMP certification;

Typical application of ultrafiltration membrane technology in traditional Chinese medicine:
1. Separation and Purification of Organic Acids, Glycosides, Alkaloids, Flavonoids and Polysaccharides by Ultrafiltration Membrane
2. Separation, Purification and Concentration of Oral Liquid, Injection, Extract and Granule of Traditional Chinese Medicine
mber of studies and practices have proved that there are still many problems in this process: first, the loss of effective ingredients, in addition, the effect of impurity removal is not ideal. Tannins, starches, resins and proteins in the extracts of traditional Chinese medicines are not easily removed by the traditional water-alcohol method, so the solid yield is still very high, which not only brings inconvenience and pain to patients, but also makes the preparations of traditional Chinese medicines easy to absorb moisture and deteriorate, and the taste of the preparations is poor.

Ultrafiltration Membrane Separation Technology for Traditional Chinese Medicine Injection:
Ultrafiltration membranes can intercept proteins and macromolecule compounds with radius ranging from 1 to 20 nm and molecular weight ranging from 1000 to 300000. It can also intercept colloidal particles of corresponding size. Ultrafiltration membranes with molecular weight rejection values of 10,000-30,000 can basically ensure the passage of active ingredients. The purpose of removing impurities and retaining active ingredients can be achieved by blocking impurities and pyrogens with molecular weight of tens of thousands to millions.
Application of Ultrafiltration Membrane Separation for Traditional Chinese Medicine Injection:
1. The pyrogen removal test of streptomycin sulfate (dihydrogen) was carried out in a small coiled ultrafiltration device with a molecular weight of 20,000. The results show that it is feasible to use ultrafiltration instead of traditional activated carbon to adsorb pyrogen in the production of streptomycin sulfate (dihydrogen).
2. A pharmaceutical company in Xi'an used sulfonated polyethersulfone membranes (SPES) with a molecular weight of 10,000 to remove pyrogen from Astragalus Injection by ultrafiltration and then adsorbed by activated carbon, so that the qualified rate of pyrogen fluctuated from the original to the current 100%.
3. Several kinds of compound Chinese herbal medicine injections such as Salvia miltiorrhiza and Gardenia jasminoides were prepared by ultrafiltration method in a domestic scientific research institute. The ultrafiltration product had good clarity and no precipitation appeared after 3 months. The contents of tannins, proteins and starches in injection were determined by ch


Hempseed oil
The appearance and characteristics are very close to the low iodine value of linseed oil, but slightly greenish.
The approximate fatty acid composition is: 10.1% saturated acid, 16% oleic acid, 46% linoleic acid, and 28% linolenic acid.
The acid value is 3 mg KOH/g, the iodine value is 149-167, and the relative density is 0.925-0.933 (15/15 ° C). The freezing point is about 16 °C.
The main ingredients are glycerides of linoleic acid, linolenic acid and oleic acid.
Used in industries such as paints and soaps.

Machine Main Technical Data:

Model

LTN-
0.1/25

LTN-
0.2/50

LTN-
0.3/75

LTN-
0.5/125

LTN
-1/250

LTN
-2/500

LTN-3/750LTN-4/1000LTN5/1250

LTN6
/1500

The volume of extracting (m³)0.10.20.30.5123456
Raw Material Input Capacity (kg)10-1520-3030-4550-70100-150200-300300-450400-600500-700600-800
Capacity of Concentrating Evaporator

25 kg/
hour

50 kg/hour75 kg/hour

125 kg/
hour

250kg
/hour

500kg
/hour

750kg
/hour

1000 kg
/hour

1250 kg/
hour

1500 kg/
hour

Water Circulation Capacity10-15T10-15T10-15T10-15T15-20T15-20T15-25T15-25T20-30T20-30T
The time of extraction (h)6-86-86-86-8888888
Concentrate density (%)1.2-1.35
The work temperature of extracting and concentrating (°C)Water: 50-90°C Alcohol: 40-80°C
Power of Vacuum Pump3kw4KW4.5KW5KW6.5kw8KW9kw10kw11kw12kw

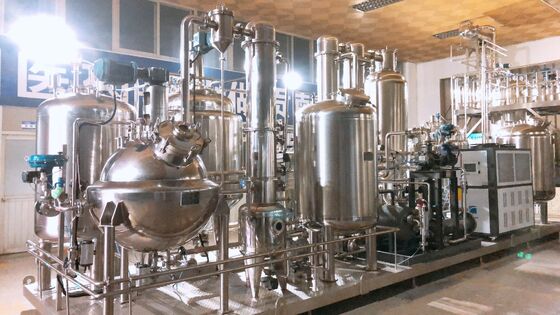

Low - Noise Herb Extraction Equipment , Membrane Concentration Machine 0

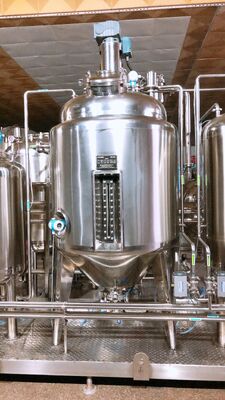

Low - Noise Herb Extraction Equipment , Membrane Concentration Machine 1Low - Noise Herb Extraction Equipment , Membrane Concentration Machine 2
