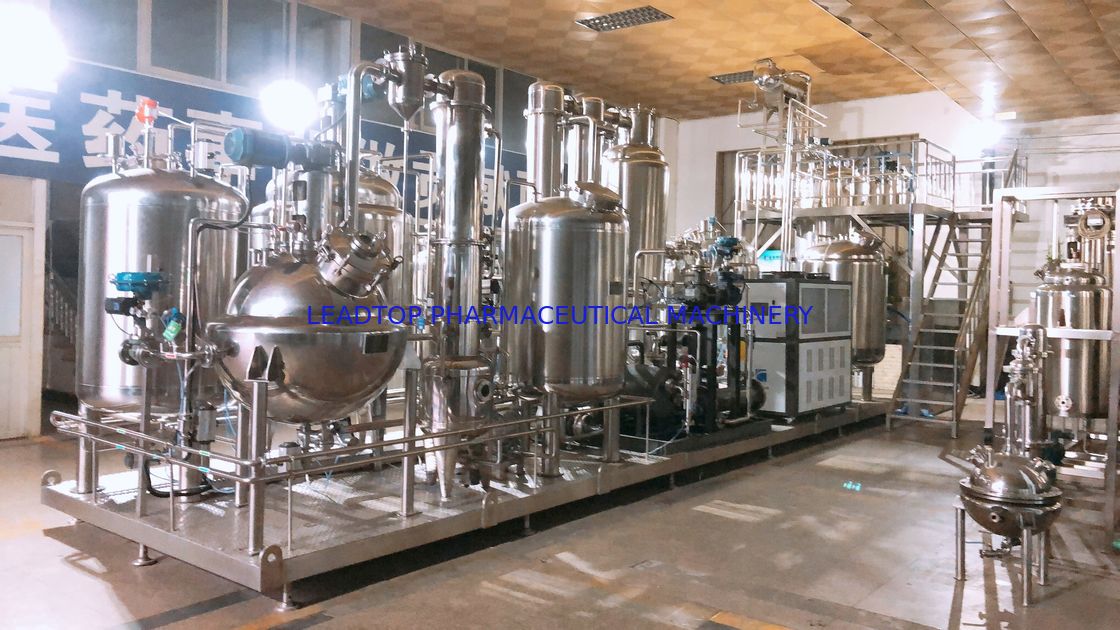

Composed by: extractor, filter, pump, heater, evaporator, condenser, cooler, oil separator and project control computer.
After dipping and heating, the liquid of traditional Chinese medicine will be pumped into the external heater for heating from the bottom of extracting tank.
The extra pump liquid will enter into heater for heating from the bottom of the extracting tank to reflow and play its partial mixing effect. After the extracting liquid is heated by the heater, it will be evaporated instantly and separated by the separation concentrator.
The twice steam will enter into the extracting tank, transmitting the heat to the solvent in the extracting tank, and also playing mixing effect.
The residual air will enter into the condenser and become solvent, and after reflux it will enter into the extracting tank. It will enter into the heater for condensed liquid to carry out heat exchange and make the temperature of condensed liquid approximate to the boiling point of solution in the extracting tank.
Then the residual air will enter into condenser. As the solvent has large reflux quantity, the density of solute will be rapidly dissolved The extraction and concentration are synchronous with continuous discharge of concentrated liquid, thus, the process is greatly reduced and only requires 4~6 hours.
1) 2 in 1 compact design, extraction, concentration/solvent recovery in one machine .
2) Equip with centrifuge pump and vacuum pump, just connect the steam, cooling water and power supply to boot the machine.

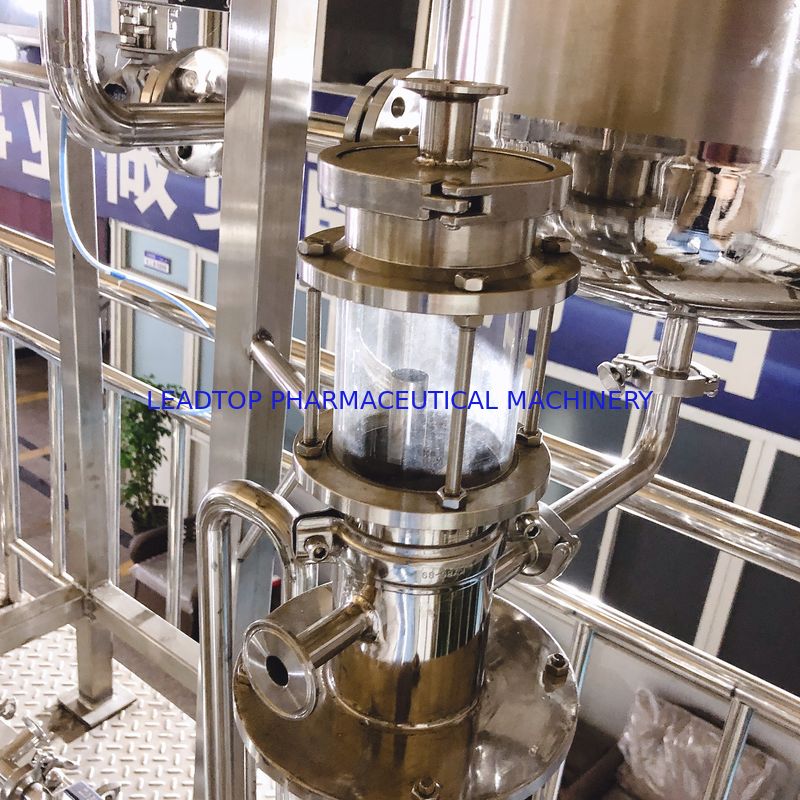

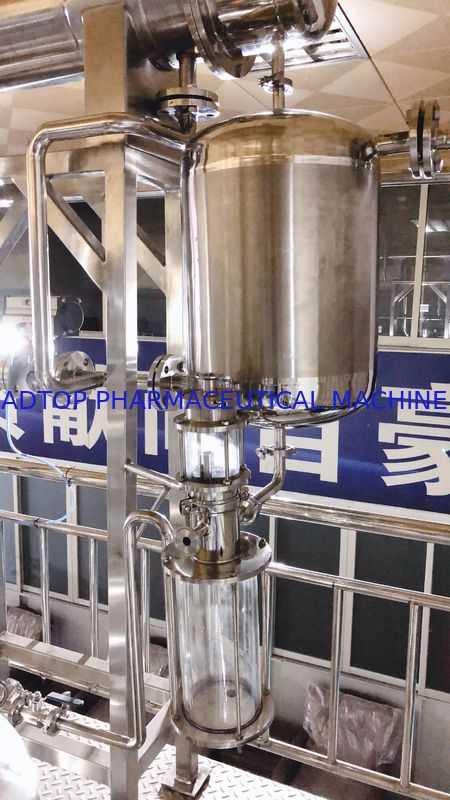

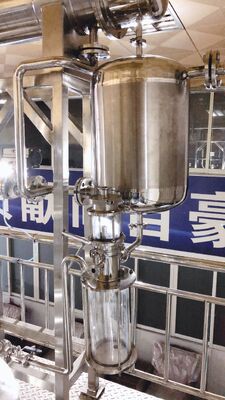

3) Equip with Oil-water separator, can collect the volatile oil in the herbs during extraction.
4) Material contact parts adopt SS304/SS316 with fine polishing to the liner, meet GMP requirement.
Hempseed oil
The appearance and characteristics are very close to the low iodine value of linseed oil, but slightly greenish.
The approximate fatty acid composition is: 10.1% saturated acid, 16% oleic acid, 46% linoleic acid, and 28% linolenic acid.
The acid value is 3 mg KOH/g, the iodine value is 149-167, and the relative density is 0.925-0.933 (15/15 ° C). The freezing point is about 16 °C.
The main ingredients are glycerides of linoleic acid, linolenic acid and oleic acid.
Used in industries such as paints and soaps.
Machine Main Technical Data:
| Model |
LTN- 0.1/25 |
LTN- 0.2/50 |
LTN- 0.3/75 |
LTN- 0.5/125 |
LTN- 1/250 |
LTN -2/500 |
LTN -3/750 |
LTN- 4/1000 |
LTN5/ 1250 |
LTN6 /1500 |
|
| The volume of extracting (m³) | 0.1 | 0.2 | 0.3 | 0.5 | 1 | 2 | 3 | 4 | 5 | 6 | |
| Raw Material Input Capacity (kg) | 10-15 | 20-30 | 30-45 | 50-70 | 100-150 | 200-300 | 300-450 | 400-600 |
500- 700 |
600- 800 |
|
| Capacity of Concentrating Evaporator | 25 kg/hour | 50 kg/hour | 75 kg/hour | 125 kg/hour | 250kg/hour | 500kg/hour | 750kg/hour | 1000 kg/hour | 1250 kg/hour | 1500 kg/hour | |
| Water Circulation Capacity | 10-15T | 10-15T | 10-15T | 10-15T | 15-20T | 15-20T | 15-25T | 15-25T | 20-30T | 20-30T | |
| The time of extraction (h) | 6-8 | 6-8 | 6-8 | 6-8 | 8 | 8 | 8 | 8 | 8 | 8 | |
| Concentrate density (%) | 1.2-1.35 | ||||||||||
| The work temperature of extracting and concentrating (°C) | Water: 50-90°C Alcohol: 40-80°C | ||||||||||
| Power of Vacuum Pump | 3kw | 4KW | 4.5KW | 5KW | 6.5kw | 8KW | 9kw | 10kw | 11kw | 12kw | |
