CE Certified Rotary Tablet Press Machine Pill Maker With Great Performance

CE Certified Rotary Tablet Press Machine Pill Maker With Great Performance

    • CE Certified Rotary Tablet Press Machine Pill Maker With Great Performance
    • CE Certified Rotary Tablet Press Machine Pill Maker With Great Performance
  • CE Certified Rotary Tablet Press Machine Pill Maker With Great Performance

    Product Details:

    Place of Origin: China
    Brand Name: LTPM China
    Certification: CE
    Model Number: ZP-31D

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: Negotiation
    Packaging Details: Wooden Case
    Delivery Time: In 25 days after receiving the deposit
    Payment Terms: 30% TT as deposit and 70% before shipping
    Supply Ability: 25 sets/Month
    Contact Now
    Detailed Product Description
    Capacity: 45,000-110,000tablets/hour Material Consist: Painted Matel
    Max. Thickness: 6mm Max.Diameter: 12mm
    Max.Pressure: 40KN Power: 2.2Kw

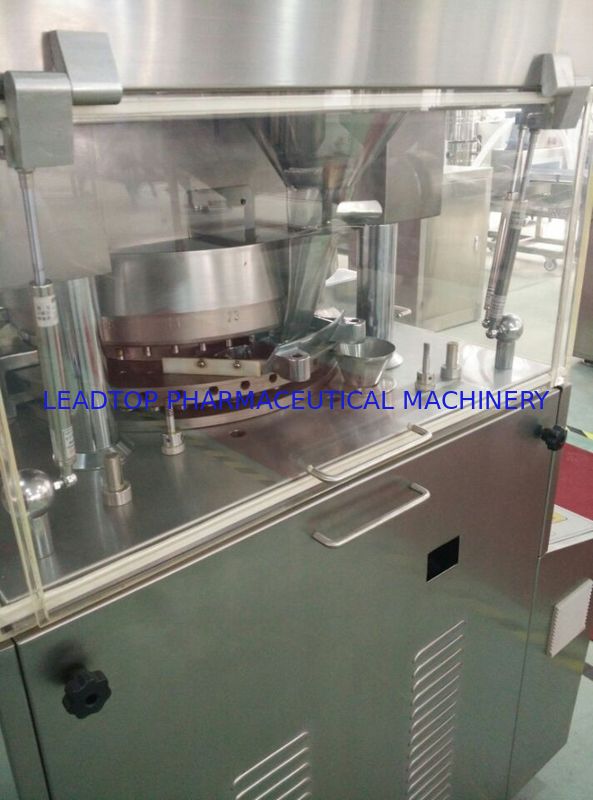

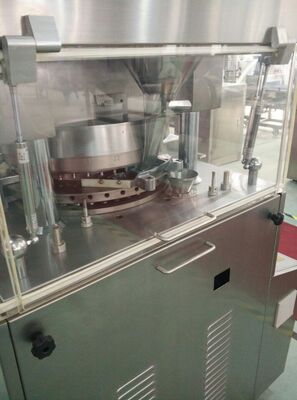

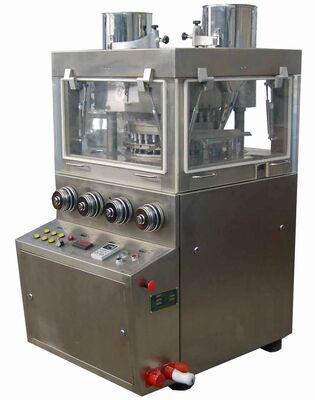

    ZP-31D High Speed Rotary Mosaic Tablet Press

    1. Machine Description

    Tablet Equipment is a double press automatic rotation can be equipped with force-feeding system for shape-pressing equipment, which have the function of press the grains material to be round or irregular shape tablets, such as candy, calcium tablets double-sides with letter printing and etc. which widely suitable for the Industries of pharmaceutical, Chemical, Foodstuff, Plastic Electronic, Powder Metallurgy and so on.





    2. Some technical features

    1. The material of the machine is made of stainless steel with totally closed, the surface of turntable deal with polished and prevent cross pollution which meet the GMP standard.

    2. It is equipped with Organic-glass perspective window for tablet producing observation. Each perspective window could be fully opened and easy for cleaning and maintenance.
    3. It is adopts the import Frequency Timing with Electromagnetism Clutch.
    4. Driving system is equipped with oil box and running under oil, easy for heat dissipation and wear-resistance.
    5. It is equipped with Dust Collector as well, which avoid the dust emission, and recycle to save dust



    3. Main technical parameters

    Dies 31 sets
    Max. pressure 80KN
    Max. Dia of Tablet 25mm
    Max. Depth of Fill 15mm
    Max. Thickness of Tablet 6mm
    Min. Capacity 50000tablets/hour
    Motor 4KW
    Dimensions 1140*1000 * 1650mm
    Weight 1850kg






    CE Certified Rotary Tablet Press Machine Pill Maker With Great Performance













































































































    For more informations, please contact us by mail or telephone call, you are the most welcome here.

    LTPM CHINA, Your Best Pharmaceutica Production Solution!
