    Product Details:

    Place of Origin: china
    Brand Name: LTPM CHINA
    Certification: CE
    Model Number: DTJ-V

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiation

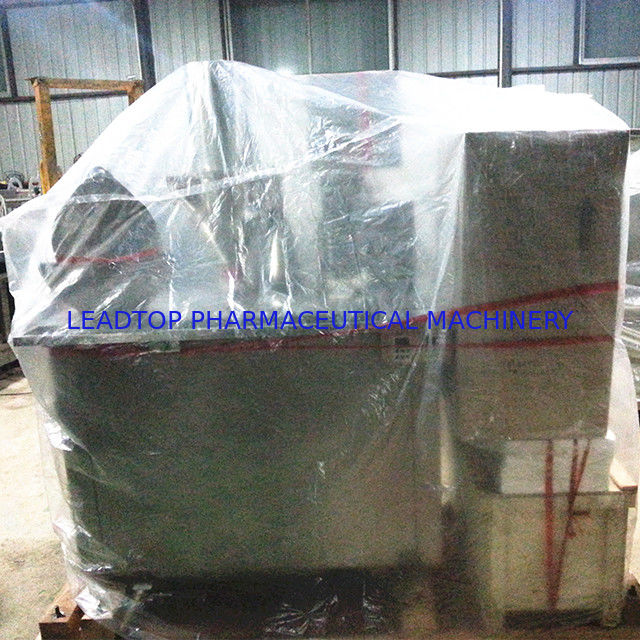

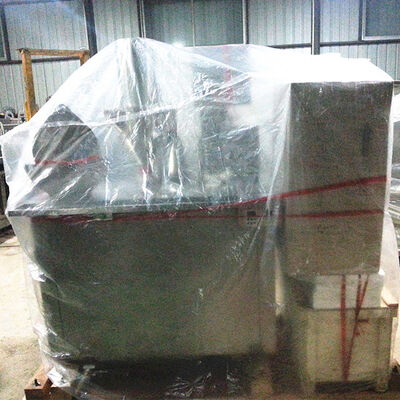

    Packaging Details: Wooden Case
    Delivery Time: In 25 days after receiving the deposit
    Payment Terms: 30% TT as deposit and 70% before shipping
    Supply Ability: 25 sets/Month
    Contact Now
    Detailed Product Description
    Filling Object: Pellet And Powder Are Both Available Capsule Size: 00#,0#,1#,2#,3#,4#,5# Are Available
    Operation: Semi Auomatic Speed: Adjutable
    Capacity: Around 200cpsules/min



    High Efficient Semi Automatic Capsule Filling Machine Widely Used Simple Operation



    Capsule Filling and Sealing Machine

    Simple Instruction

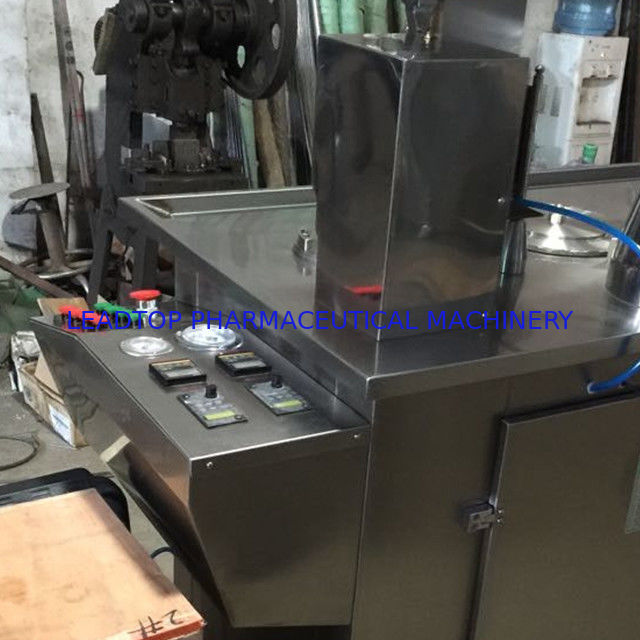

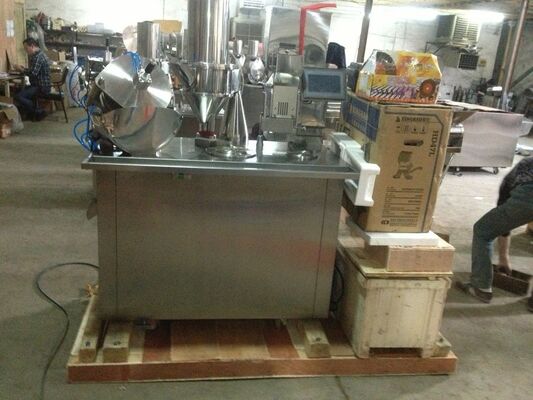

    DTJ-V Semi-Automatic Capsule Filling Machine is special capsule filling machine which is suitable for medium and small pharmaceutical factory, hospital preparation lab, etc. The machine adopted programmable control system, touch panel operation, stepless transduction speed-shift, and electronic automatic counter. And it automatically completes the action of position, separation, filling, locking, etc. The dosage is accurate, and the operation is convenient. The overall machine is made of stainless steel, and it is suitable for the capsule which is filled with powder and grain.

    Main Technical Data:

    Model: DTJ-V
    Capsule Size: #00,#0, #1, #2, #3, #4, #5
    Vacuum Pump: XD-040(40m³/hour)
    Capacity Of air compressor: 0.1m³/min
    Noise: Less than 60dB (A)
    Overall Dimensions: 1200*700*1600mm
    Packing Dimensions: 1800*800*1800mm
    Net Weight: 330Kg
    Gross Weight: 525Kg
    Capacity: 120000capsules/hour
    Power Supply: 220V 50Hz



    Feature:

    It adopts Cycloid Motor for making machine in lowest sound running. There three Cycloid Motor in this machine.

    DTJ-V adopts Touch Button for operating. It will be hard for making powder into Controlling System.

    Easy for Changing Mould from Size 00 to 5#.

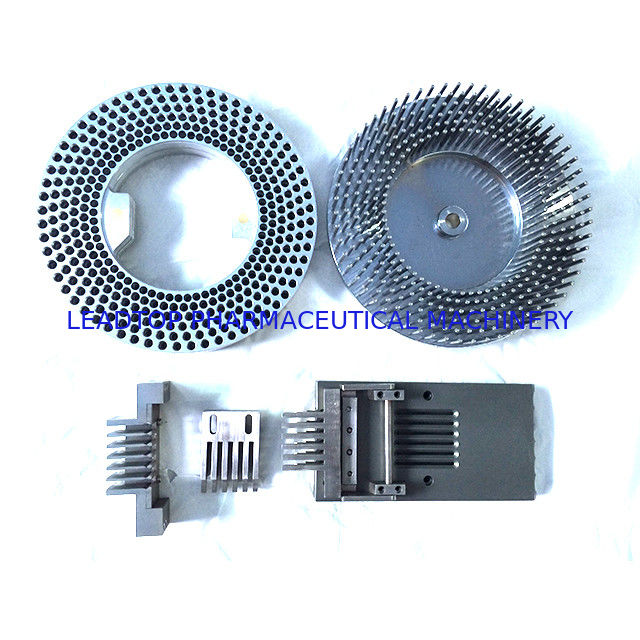

    The machine is whole Body stainless steel. Capsule Feeder is Copper, Capsule Disk is Aluminum Disk, Capsule Locking position Copper. (For Detailed please see following Mould List)

    We call the Semi Automatic Capsule Filling Machine operating THREE STEPS, Operator is easy to know how to Separate Capsules, Filling Capsules, Locking Capsules means Output.



     High Efficient Semi Automatic Capsule Filling Machine Widely Used Simple Operation

































































    For More informations,please contact us by mail or telephone.

    LTPM CHINA, Your best Pharmaceutical Production Solution!
