Big Capacity Blister Packaging Machine Pharmaceutical Industry CE GMP And FDA Approved

Big Capacity Blister Packaging Machine Pharmaceutical Industry CE GMP And FDA Approved

blister packaging equipment

tablet blister packing machine

Place of Origin:

ZheJiang,China(Mainland)

Brand Name:

LTPM CHINA

Certification:

CE

Model Number:

DPP-250A

Contact Us

Request A Quote
Product Details
Capacity:
50cutting/min
Packaging Type:
Alu/PVC And Alu/Alu
Control System:
Micro Computer
Feeding:
Universal Feeder
Power:
9.5kw
Material Consist:
Stainless Steel
Product Description



Automatic Aluminum Plastic Blister Sealing Machine CE GMP And FDA Approved

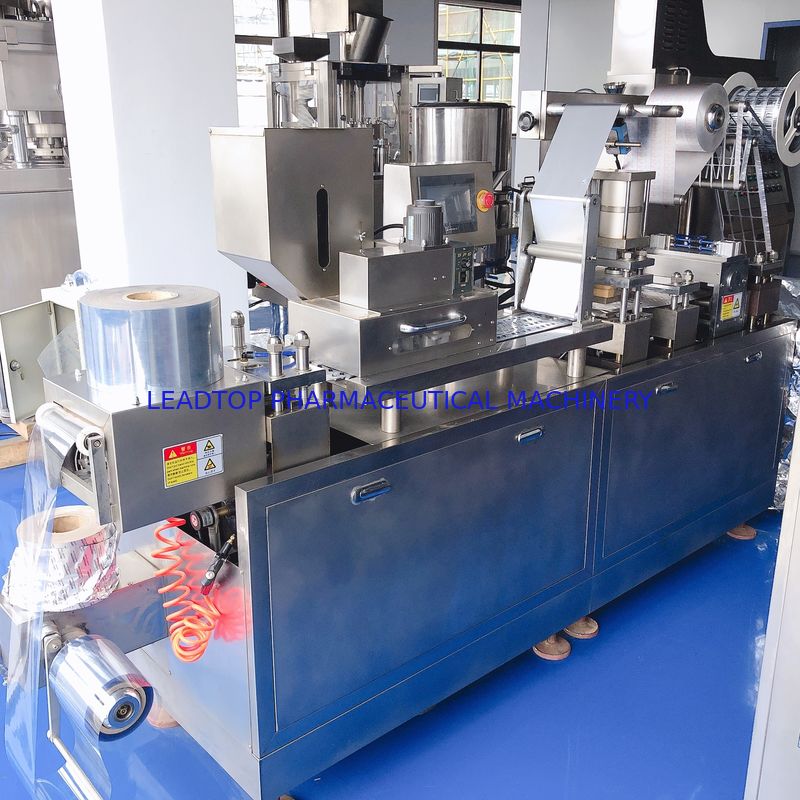

DPP-250 Automatic Blister Packing and Sealing Machine

The product is specially designed for hospital dosage room, laboratory institute, health care product, middle-small pharmacy factory, and featured by compact machine body, easy operation, multi-function, stroke adjustable, long durability etc, it is suitable for the Alu-PVC package of medicine, food, electric parts etc. Aided forming Pre‐cutting Inspection and rejecting control systems. Print mark registration Automatic feeder



Main Technical Data:

MODEL: 250A
Blanking frequency (cutting): 15-45
Sheet's quantity of one blanking (sheets): 1-6(depends to your blister size)
Capacity (blisters/min): 5-400
Adjustable scope of feed travel: (mm) 10-120
Max Forming depth (mm) PVC: 270×120×25
Capacity of air compressor(m3/min): 0.36
Power supply (KW): 220V AC, 50 Hz, Three Phase (Depend on your requirement.
Weight (kg): 1260Kg




Feature:

l Travel scope can be adjusted.

l Mould is located by locating groove so that it’s easy to change mould. Adopt the moulds of pressing-and-frothing and cool-forming.

l The material is fed automatically. The mould and feeding equipment can be designed as user’s requirements.

l Speed is shifted by step-less transducer. Adopt the interface of human-machine and PLC programmable controller.

l Adopt photoelectric empty-detecting equipment and waster-eliminating equipment.

l Servo motor drive wheel to grip and tow wrapper, synchronize accurately. And it will be not waste of time and material for adjusting when restart the machine.

l The machine equipped Camera Cell for sensor, make the length in an accurate number.

l The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine’s life.
