• Durable Automatic Blister Packing Machine , Aluminum Small Blister Pack Machine
  • Durable Automatic Blister Packing Machine , Aluminum Small Blister Pack Machine
Durable Automatic Blister Packing Machine , Aluminum Small Blister Pack Machine

Durable Automatic Blister Packing Machine , Aluminum Small Blister Pack Machine

Product Details:

Place of Origin: Zhejiang,China (Mainland)
Brand Name: LTPMChina
Certification: CE
Model Number: DPP-140A

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Packaging Details: Wooden packing
Delivery Time: 30
Payment Terms: Negotiable
Supply Ability: 1 sets per month
Get Best Price Contact Now

Detail Information

MODEL: 140A Blanking Frequency(cutting): 5-50
Sheet's Quantity Of One Blanking: 2 Capacity (blisters/min): 45-100
Adjustable Scope Of Feed Travel: (mm): 10-120 Max Forming Depth (mm) PVC: 160*120*25
High Light:

pharmaceutical equipment

,

pharma machinery

Product Description

Durable Automatic Blister Packing Machine , Aluminum Small Blister Pack Machine





Durable Automatic Blister Packing Machine , Aluminum Small Blister Pack Machine



Product Description



The machine is new product which is improved based on customer’s requirements. It’s suitable for packaging of all kinds of liquid and solid in large & medium pharmaceutical factory, health medicine factory, hospital preparation lab, food industry, electronic industry, hardware industry, etc. It can protect the material from steam or dust, improve product packing degree, and increase the additional value. The machine is used to produce large quality and single product.

Feature:

Travel scope can be adjusted.

Mould is located by locating groove which makes it easy to change mould. The machine heats the PVC through conduction and forms it through pressing and frothing.

The material is fed automatically. The mould and feeder can be designed as user’s requirements.

Speed is shifted by step-less transducer. Adopt the interface of human-machine and PLC programmable controller, it can synchronize accurately.

Adopt the equipment of trace pressing, batch number printing and scarp-collecting.

Stepping motor drives and tow materials.

The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine’s life.





Technical Parameters

DPP-140A auto tablet blister packaging machine
Model
150
Cutting Frequency (times /min)
15-50
Output Capacity (sheet/hour)
3000-6000
Traveling (mm)
40-130
Forming Area & Dep (mm)
150×110×30
Power
380V 50HZ 6.5KW
Foil Width (mm)
150
Overall Dimension(mm)
2850×530×1700
Weight(KG)
1000



Original 140A


Improved 140A

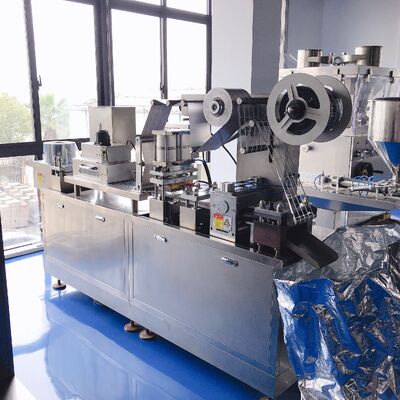

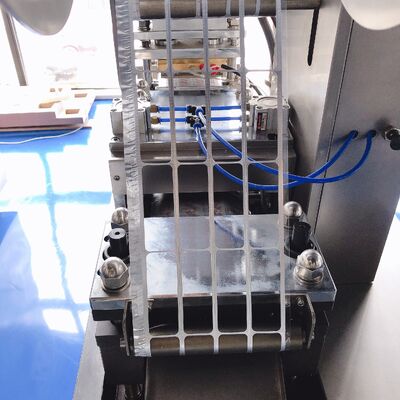

More detail picture of DPP-140A
