Place of Origin:
ZheJiang,China(Mainland)
Brand Name:
LTPM CHINA
Certification:
CE
Model Number:
DPP-260K
Contact Us

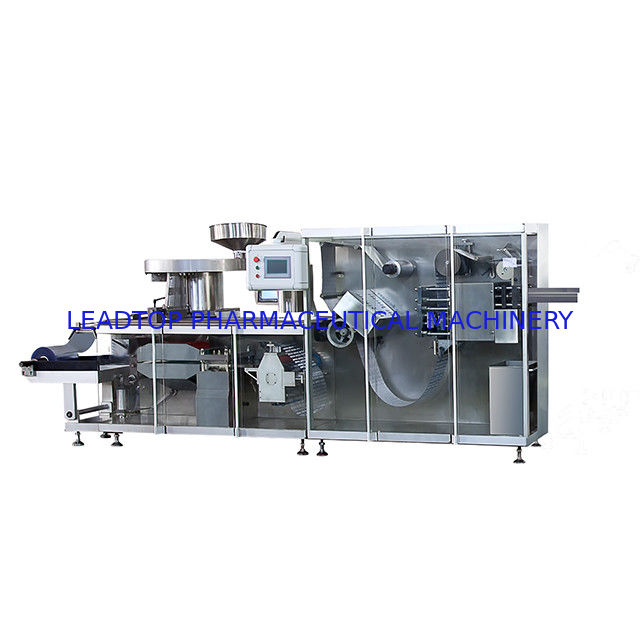

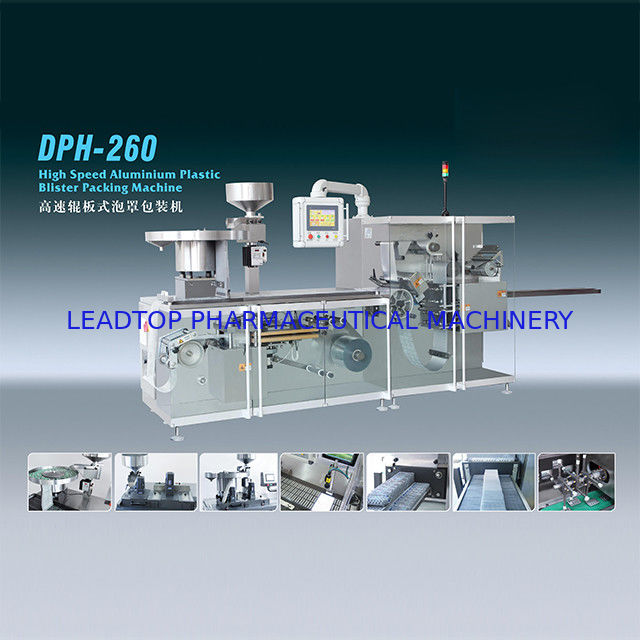

DPP-260K Blister Packing machine is new type Blister Packing Machine both for Alu Alu and Alu PVC, which is improved based on customer's requirements. It's suitable for packaging of all kinds of liquid and solid in medium & small pharmaceutical factory, health medicine factory, hospital preparation lab, food industry, electronic industry, hardware industry, etc. It can protect the material from steam or dust, improve product packing degree, and increase the additional value. The machine is used to produce small quantity and various kinds of products.
Feature
High efficiency, low consumption
Easy operating
Energy saving
CE, ISO, GMP

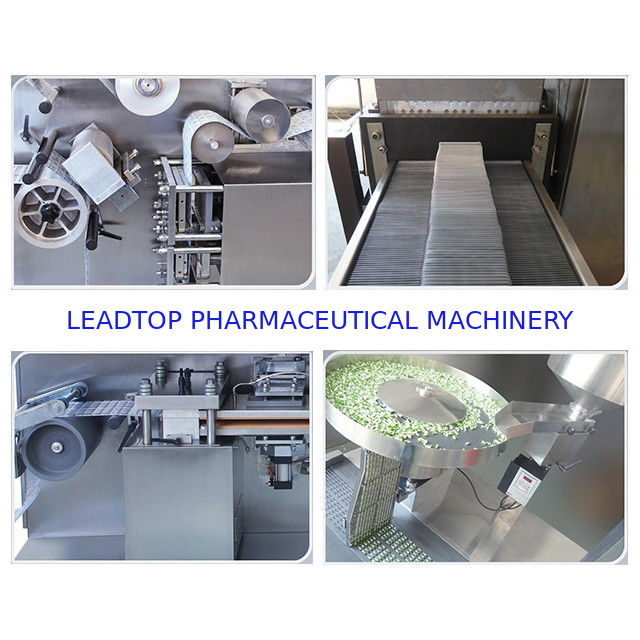

Description
1. Travel scope can be adjusted.
2. Both Alu PVC and Alu Alu Blister Packaging are available for this machine.
3. Mould is located by locating groove which makes it easy to change mould. The machine heats the PVC through conduction and forms it through pressing and frothing.
4. The material is fed automatically. The mould and feeder can be designed as user's requirements.
5. Speed is shifted by step-less transducer. Adopt the interface of human-machine and PLC programmable controller, it can synchronize accurately.
6. Adopt the equipment of trace pressing, batch number printing and scarp-collecting.
7. Servo motor Pulling Material more accuracy and easy adjusting
8. The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine's life.
|
SPECIFICATIONS FOR DPP-260K BLISTER PACKING MACHINE
|
|||
|
Model
|
DPP-260K
|
||
|
Blamking Frequency
|
25-70 cuttings/min
|
||
|
Adjustable scope of feed travel
|
30-120mm
|
||
|
Max. forming Area
|
260*115*25mm
|
||
|
|
PVC: (0.2-0.5)*260mm
|
||
|
PTP Alu foil: (0.02-0.05)mm
|
|||
|
Cold forming Alu: (0.09-0.15)*260mm
|
|||
|

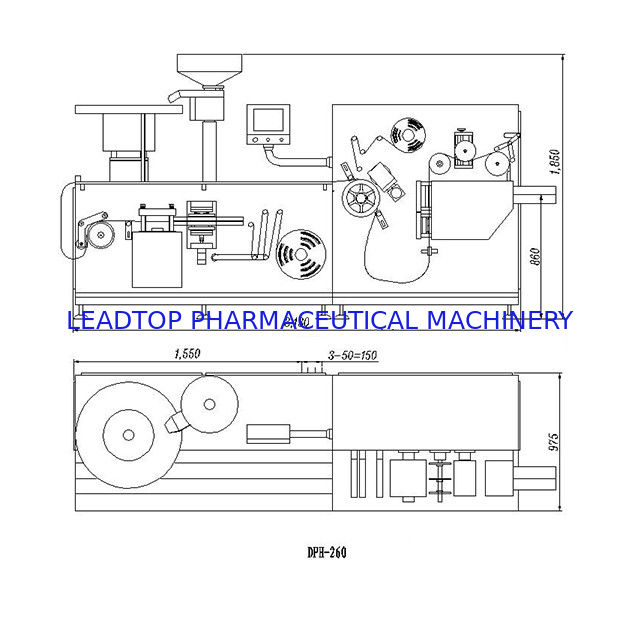

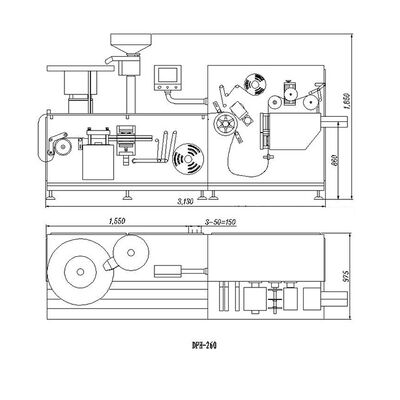

Overall Dimensions
|
4540×1088×1820mm
|
||
|
Power Supply
|
380V 50Hz /220V 60Hz 9kw
|
||
|
Weight
|
1800Kg
|
||
1.we have seven technicians who gets passport ready to travel all over world to offer service to you.
2.We have 24hours hot line for Technical Support.
3.We get 18hours internet line for technical support.
4.Video camera in workshop to help you adjust and solve machine problem in working situation.
