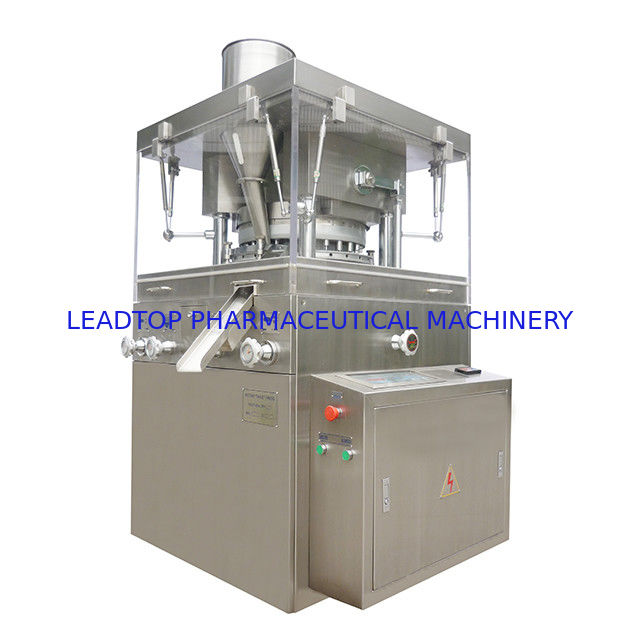

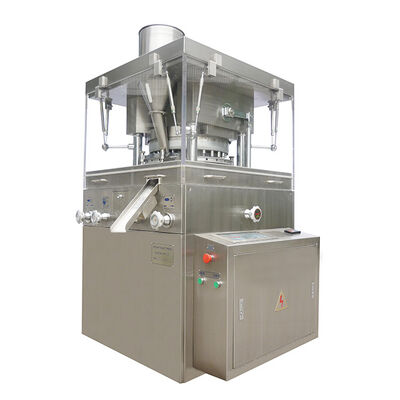

ZP-31D High Speed Rotary Mosaic Tablet Press
| Application: | |||
| That machine is a double press automatic rotation can be equipped with force-feeding system for shape-pressing equipment, which have the function of press the grains material to be round or irregular shape tablets, such as candy, calcium tablets double-sides with letter printing and etc. which widely suitable for the Industries of pharmaceutical, Chemical, Foodstuff, Plastic Electronic, Powder Metallurgy and so on. | |||
| Features: | |||
Main Technical Data: |
|||
| Stations (unit) | 31 | Thickness of the die (mm) | 28 |
| Maximum compression (KN) | 80 | The diameter of the circle of the central pitch of upper &lower punches on the turret | 320mm |
| Max. Diameter of tablet to be produced (mm) | 13 | Rotary speed of the turret (rpm) | 10-35 |
| Max. Filling depth (mm) | 15 | Capacity of the tablets (tablets/hour) | 150,000 |
| Max. Thickness of tablet (mm) | 6 | Area to occupy (mm 2 ) | 1500*1300*1650mm |
| Diameter of the upper/lower shank (mm) | 32 | Height of the machine (mm) | 1650 |
| Length of the upper shank (mm) | 175 | motor power (kw) | 3 |
| Length of the lower shank (mm) | 183 | Net weight of the machine (kg) | 1.8 |
| Diameter of the die (mm) | 36 | ||
