Fully Auto Horizontal Cartoning Machine For Blister / Soap / Bottle / Perfume

China Fully Auto Horizontal Cartoning Machine For Blister / Soap / Bottle / Perfume supplier
Fully Auto Horizontal Cartoning Machine For Blister / Soap / Bottle / Perfume supplier Fully Auto Horizontal Cartoning Machine For Blister / Soap / Bottle / Perfume supplier Fully Auto Horizontal Cartoning Machine For Blister / Soap / Bottle / Perfume supplier Fully Auto Horizontal Cartoning Machine For Blister / Soap / Bottle / Perfume supplier Fully Auto Horizontal Cartoning Machine For Blister / Soap / Bottle / Perfume supplier Fully Auto Horizontal Cartoning Machine For Blister / Soap / Bottle / Perfume supplier

Large Image :  Fully Auto Horizontal Cartoning Machine For Blister / Soap / Bottle / Perfume

Product Details:

Place of Origin: China
Brand Name: LTPM China
Certification: CE, GMP, SGS, BV
Model Number: ZH-100

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Export Standard Wooden Case
Delivery Time: 25days
Payment Terms: T/T, L/C, D/P
Supply Ability: 25 sets/Month
Contact Now
Detailed Product Description
Operation: Touch Screen Leaflet Insert: Included
Material Consist: SS304 Accesory Equipment: Air Compressor
Packaging Material: Paper,Cardboard Application: Food,Beverage,Commodity,Medical

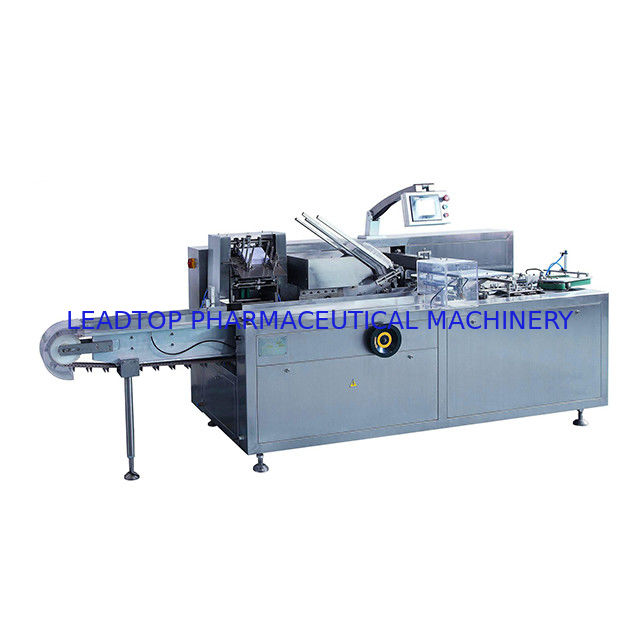

ZH-100 Automatic Cartoning Machine


ZH-100 Automatic Horizontal Carton Packaging Machine

Simple Instruction:

This machine is suitable for packing AL/PL Blister, bottle, Pillow Type Bags and other related similar content compact automatic leaflet folding, box opening and loading, batch number embossing as well as sealing technology processes. (Options hot-glue device extra)
The machine adopts PLC Control. Optical detect every part of the machine. The machine will stop automatically and trouble display when machine running exceptional in order to solving trouble in time. This machine can be used separately and also connect with Blister Packaging Machine online.

Capacity and Characteristic:

1) Continuous mechanical feeding materials and carton, and working of each function part are in harmony, stable and reliable.
2) When material do not reach correct position, the pusher has an alarm and half facility for that, in order to ensure good quality of carton packaging and safety in operation effectively.
3) Constantly moving carton-opening mechanism and pulling carton-opening mechanism are more stable and reliable.
4) Vibrating material categorizing and feeding mechanism is stable and reliable.
5) Half facility for air pressure and vacuum protection, when caster opened, the halt facility will be checked automatically for operating safety of the machine.
6) It is easy, convenient and quick to change and adjust product size by hand wheel on instrument panel.
7) Variable frequency speed regulation, PLC automatic control, Operating on the touch screen, words and numeric display, easy to operate, stable coefficients in operation.
8) Overload protection for principal driving, indication of failure diagnosis, and automatic halt of failure

Feature:

1) Rejection automatically if no product, nonstandard height or lack of leaflet.
2) Stop automatically if incorrect position of products into carton.
3) Stop automatically if no cartons or out of leaflet continues.
4) Easy to change to different products.
5) Protecting automatically for overloading.
6) Automatically display device for speed and finished products counting.


Main Technical Data:

Model ZH-100
Weight in kg 1100
Steady production speed 50-100 cartons/min
Grammage Between 60-70g/m2
Size range (80-250) ×(90-170)mm (L×W)
Fold range (1-4 )fold
Notice: The leaflet can be folded by the machine
Grammage Between 250-350g/m2
Carton Size mm (65-125)×(30-85)×(12-50)mm
Standard power supply 220V – 50Hz
Power consumption in KW 0.75
Air consumption 120-160L/min
Compressed Air Pressure 0.6MPa
Nois <70 dB
