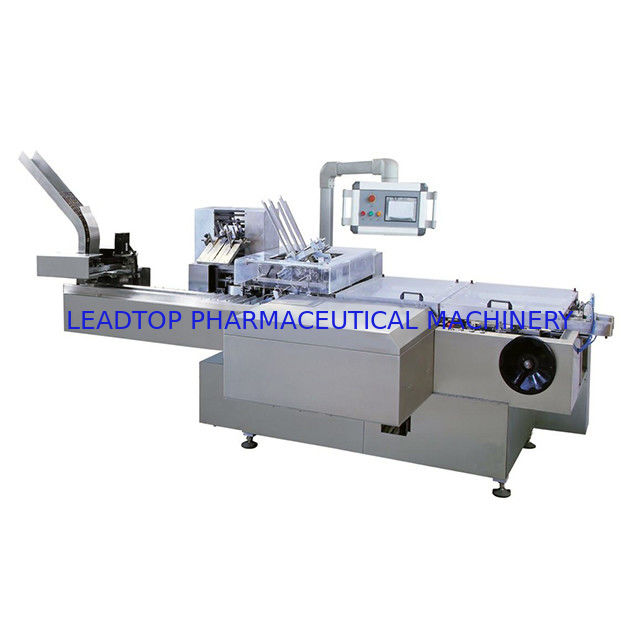

ZH -120 Auto Cartoner Machine Simple Operation Box Packaging Machine

ZH -120 Auto Cartoner Machine Simple Operation Box Packaging Machine

    • ZH -120 Auto Cartoner Machine Simple Operation Box Packaging Machine
    • ZH -120 Auto Cartoner Machine Simple Operation Box Packaging Machine
    • ZH -120 Auto Cartoner Machine Simple Operation Box Packaging Machine
    • ZH -120 Auto Cartoner Machine Simple Operation Box Packaging Machine
    • ZH -120 Auto Cartoner Machine Simple Operation Box Packaging Machine
  • ZH -120 Auto Cartoner Machine Simple Operation Box Packaging Machine

    Product Details:

    Place of Origin: CHINA
    Brand Name: LTPM
    Certification: CE
    Model Number: ZH-120

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: 26800
    Packaging Details: wrapped with strech film packed into Export Standard Wooden case, this package afford long time sea shipment and anti moisture.
    Delivery Time: 25 DAYS
    Payment Terms: L/C, D/A, D/P, T/T
    Contact Now
    Detailed Product Description
    Voltage:: 380v 50hz Three Phase Place Of Origin:: Zhejiang, China (Mainland)
    After-sales Service Provided:: Engineers Available To Service Machinery Overseas Leaflet Insert:: Included
    Accesory Equipment:: Air Compressor Operation: Touch Screen



    Box Packaging Machine

    Product Description





    Simple Instruction:

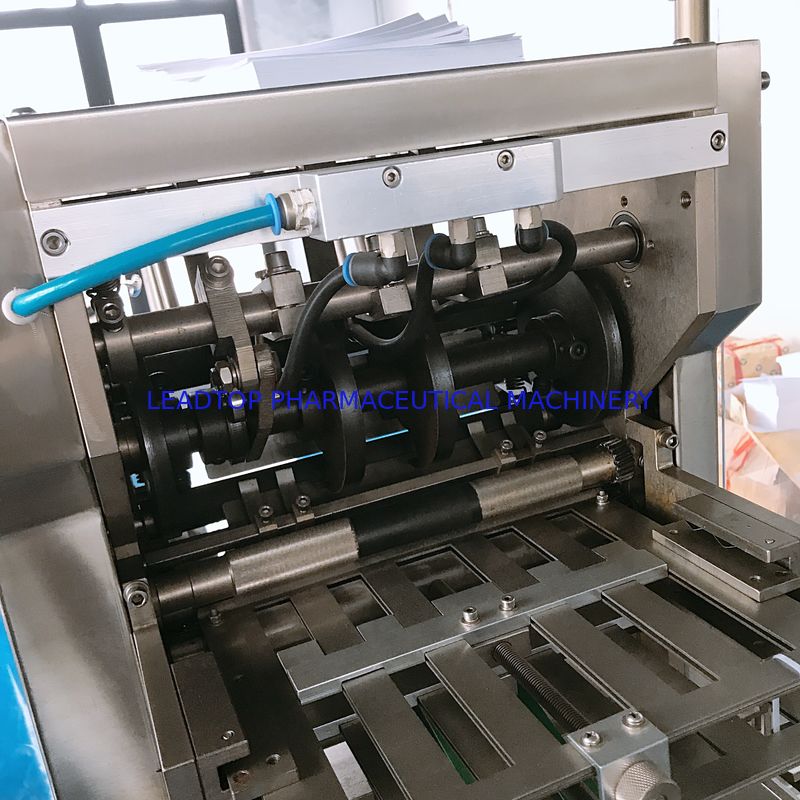

    Box Packaging Machine is suitable for packing AL/PL Blister, bottle, Pillow Type Bags and other related similar content compact automatic leaflet folding, box opening and loading, batch number embossing as well as sealing technology processes. (Options hot-glue device extra)

    Box Packaging Machine adopts PLC Control. Optical detect every part of the machine. The machine will stop automatically and trouble display when machine running exceptional in order to solving trouble in time. This machine can be used separately and also connect with Blister Packaging Machine online.



    Feature:



    1) Rejection automatically if no product, nonstandard height or lack of leaflet.

    2) Stop automatically if incorrect position of products into carton.

    3) Stop automatically if no cartons or out of leaflet continues.

    4) Easy to change to different products.

    5) Protecting automatically for overloading.

    6) Automatically display device for speed and finished products counting.





    Main Technical Data:



    Model ZH-100
    Weight in kg 1100
    Steady production speed 50-100 cartons/min
    Grammage Between 60-70g/m2
    Size range (80-250) ×(90-170)mm (L×W)
    Fold range (1-4 )fold
    Notice: The leaflet can be folded by the machine
    Grammage Between 250-350g/m2
    Carton Size mm (65-125)×(30-85)×(12-50)mm
    Standard power supply 220V – 50Hz
    Power consumption in KW 0.75
    Air consumption 120-160L/min
    Compressed Air Pressure 0.6MPa
    Noise <70 dB











    .jpg
























    Our Services



    1. 24*7days hotline service.

    2. Technology Support: we offer engineer at site training and intsllation service all over the world.

    3. Documentation: DQ, IQ, OQ, PQ, FAT, SAT, Manual, etc for GMP validation purpose.

    4. One year spare parts Free Guarantee

    5. Production Solution Suggestion
