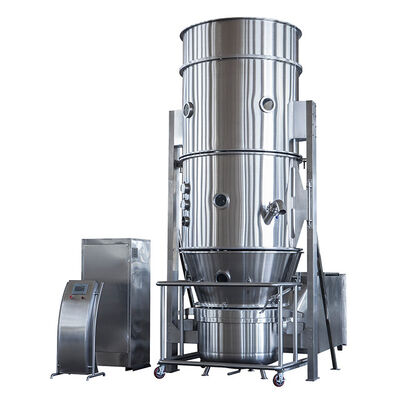

GMP Standard PLC Control Fluidized Bed Granulator Machine For Foodstuff Use

GMP Standard PLC Control Fluidized Bed Granulator Machine For Foodstuff Use

pharmaceutical equipment

pharma machinery

Place of Origin:

China

Brand Name:

LTPM China

Certification:

CE, GMP

Model Number:

FL

Contact Us

Request A Quote
Product Details
Batch Time:
10-30minute/bacth
Capacity:
300kg
Material Consist:
SS304(SS316 Is Available)
Working Principle:
Powder Mixed With Spay Granulate And Dry Through Hot Air
Application:
Powder
Control System:
PLC Control Or Micro Computer
Product Description







Product Description



The powder granule in fluid bed appears in the state of fluidization. It is preheated and mixed with clean and heated air. At the same time the solution of adhesive is sprayed into the container. It makes the particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.





Application



1.Drugs granulation and coating
2.Granulation: Tablet particles, granule particles, capsule particles
3.Coating: particles, pill covers, color-prepared, slow-release, films, enteric coating
4.Food granulation and coating Granulated sugar, coffee, cacao powder, cream, juice powder, amino acids, sauce, puffed food
5.Pesticide, paint pigment, dry granulation Powder, granules, block materials





Functions



1.By using powder granulation, to improve the liquidity and thinner dust.
2.By using powder granulation, to improve solubility property.
3.Mixing—granulation—drying can be finished in one device (one-step granulation)
4.To adopt antistatic filtering mediums, to ensure safe operation.
5.Caking agent atomizer adopts multi-fluid spray gun to maintain uniform spray particles and to increase the rate of qualified products greatly.
6.No dead-corner of equipment; it is easy and rapid of feeding or discharging materials and clean of washing to satisfy the GMP standard.





Technical Data

Model 150
Volume (L) 420
Amount to be treated (kg/per time) 80/160
Power of fan (kw) 18.5
Consume of steam 0.4MPa(kg/h) 211
Consume of compressed air (m3/min) 0.3
Noise,dB (A) (fan is installed separately) ≤75
Main machine height (m) 2.2×1.65×3.3







GMP Standard PLC Control Fluidized Bed Granulator Machine For Foodstuff Use 0
