Place of Origin:
ZheJiang,China(Mainland)
Brand Name:
LTPM CHINA
Certification:
CE
Model Number:
DPH-260
Contact Us

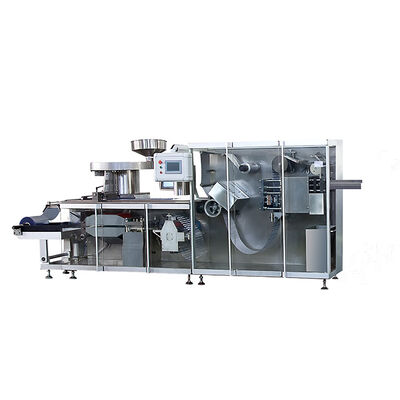

DPH-260H High Speed Roller Type Blister Packing Machine is the new generation product elaborately researched and developed by our company. Its maximum cutting frequency can be 200 times per minute. It combines the advantages of flat type and roller type blister packaging machine, and adopts special feeder for irregular tablet, with high cutting frequency, low energy consumption, accurate action, stable and easy to change mold, high yield, and the stagger blister no horizontal waste edge cutting, highly improves the production efficiency. The machine design is more reasonable, it adopts automatic control technology which integrate frequency control and machine, electricity, light, air, and creative design strictly according to pharmaceutical industry GMP standard.
|
Technical Parameter for DPH-260H High Speed Blister Packing Machine
|
|
|
Cutting Frequency
|
70-200 times/min
|
|
Production Capacity
|
12600-36000 blisters/hour
|
|
Range Of stroke
|
20-100 mm
|
|
Max. Forming Area
|
260X250mm
|
|
Max. Formed Depth
|
12mm
|
|
Forming power (Upper& Lower)
|
2KW(×4)
|
|
Heat-Sealing power
|
3KW
|
|
Main Motor Power
|
1.5KW
|
|
Total power
|
380V 50HZ(220V 60HZ)15.5KW
|
|
Volume Flux Of Air Pump
|
≥0.5m3/min
|
|
Packing Material Specification
|
PVC/PVDC/PET: 0.25X260 mm
Alu Foil (PTP) : 0.02X260 mm
|
|

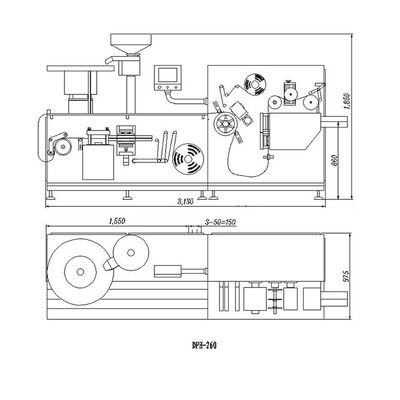

Overall machine dimension
|
4860X1070X1720mm
|
|
Overall Packing dimension
|
5260X1170X2150mm
|
|
Weight
|
3000Kg
|
|
Packaging of DPP-250A
|
|
|
Size
|
4800(L) * 1200(W) * 2000(H)mm
|
|
Weight
|
3400kgs
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated according to customers special request.
|
Q1: What information should I let you know if I want to get quotation?
A: -the size of products (Length*Width*Height)
-the material/ film
-the required production capacity
Q2: Is there MOQ for our machine?
A: 1 set is acceptable. Of course, if you order more, it will be fine and its price will be more competitive.
Q3: Do you have manual or operation video for us to know more about the machine?
A: Yes, of course. Please email us and ask for it. We will send you soon.
Q4: When can I get the price?
A: We usually quote within 24 hours after getting your inquiry. If you are urgent to get the price, please call us or tell us in your email. We will regard your inquiry priority.
Q5: How does your factory regard quality control?
A: Quality is priority. It's the basement of our company's development. From the beginning of opening company, we especially focus on quality job. Our pharmaceutical equipment have passed the GMP model patents and invention patents issued by State Patent Office of China.
