Aluminum Plastic Automatic Blister Packing Machine , High Speed Blister Pack Sealing Machine
Product Details:
| Place of Origin: | ZheJiang,China(Mainland) |
| Brand Name: | LTPM CHINA |
| Certification: | CE |
| Model Number: | DPH-260 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1Set |
|---|---|
| Price: | USD 32,000 -56,000 Per Set |
| Packaging Details: | packed into Export Standard Wooden case which can afford long time Sea shipment and anti-moisture function. |
| Delivery Time: | 30 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 25 Sets per month |
|
Detail Information |
|||
| Speed(Standard Plate 80mm×57mm×3): | 60-130cut/min | Capacity: | 10800-32400strip/hour |
|---|---|---|---|
| Scope: | 20-250 Mm | Max. Forming Area: | 260*250mm |
| Max.Depth: | 12mm | Pre-Heating Power: | 2KW(×4) |
| Heat Sealing Power: | 3KW | Servo Motor Power: | 0.75KW X 2 |
| Main Motor: | 1.5KW | ||
| High Light: | blister packaging equipment,tablet blister packing machine |
||
Product Description
Aluminum Plastic Automatic Blister Packing Machine , High Speed Blister Pack Sealing Machine

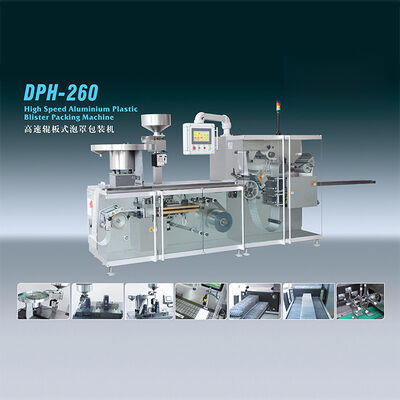

DPH-260 High Speed Aluminum Plastic
Blister Packing Machine
Simple Introduction:
DPH-260 blister packing machine is a machine adopts in the lead position of quality, good capability, all-round function, good reliability and high productivity. It adopts auto-controlling technology and uses new material, new craft, and new technology to make the structure more reasonable.
DPH-260 combines the advantages of good forming of flat pattern packing machine and high speed of roller pattern machine. The forming could be done in low speed through reasonable speed matching. And the sealing station, compressing station and punching station could achieve a speed of 120 cutting per minute. High speed is with perfect function
This series machine is at high precise and the latest roller and plate type blister packing machine, developed by our company. It applies to pharmaceutical industry, food industry, medical appliance and electronically area. It is suitable for packing capsules, tablets, milk pieces, candy, electronically element and similar material, with sealing packing in aluminum PVC, paper PVC Blister Package.
Feature:
- Plate-type universal feeder although easy and not high effective, it is very extensively applied and suitable for large size and small size capsule, various tablets and pills.
- High speed vibrating feeding. The feeder can suitable for any speed of the machine. Our Vibration Feeder adopts Stainless Steel tube for feeding, Suitable for GMP Standard.
- High-precise servo stepping. The machine adopts Servo Motor for Running. So the speed adjusting and running will be more accuracy.
- The machine is equipped Double Sealing makes the Sealing Perfect, no air run trough the seal.
- Whole Body Stainless steel with Flexi Glasses. Better Appearance.
Main Technical Data:
| Item | Data | |
| Speed(Standard Plate 80mm×57mm×3) | 60-130cut/min | |
| Capacity | 10800-32400strip/hour | |
| Scope | 20-250 mm | |
| Max. Forming Area | 260*250mm | |
| Max.Depth | 12mm | |
| Pre-Heating Power | 2KW(×4) | |
| Heat Sealing Power | 3KW | |
| Servo Motor Power | 0.75KW X 2 | |
| Main Motor | 1.5KW | |
| Power and E-Consumption | Three Phase 380V 50HZ(220V 60HZ)14.5KW | |
| Air Consumption | ≥0.6m3/min | |
|
Packing Material |
PVC | 0.25X260mm |
| PTP | 0.02X260mm | |

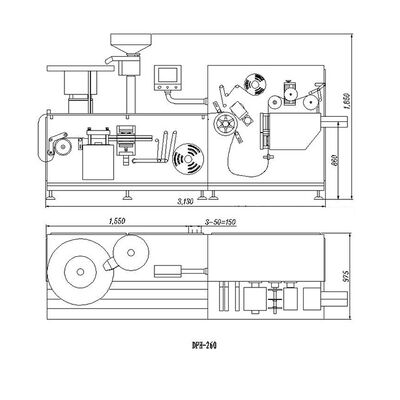

| Overall Dimension | 3130×975×1850mm | |
| Size after packing | 3900X1220X2150mm | |
| Weight | 3000Kg | |
