Ultrasonic Liquid Bottle Filling Machine For 2-1000ml Plastic / Glass Bottle

Ultrasonic Liquid Bottle Filling Machine For 2-1000ml Plastic / Glass Bottle

Product Details:

Place of Origin: China
Brand Name: LTPM China
Certification: SGS, CE
Model Number: LTSX

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Export Standard Wooden Case
Delivery Time: 25days
Payment Terms: T/T, L/C, D/P, Cash, Paypal
Supply Ability: 15sets/month
Get Best Price Contact Now

Detail Information

High Light:

water bottle filling machine

,

automatic bottle filling machine

Product Description

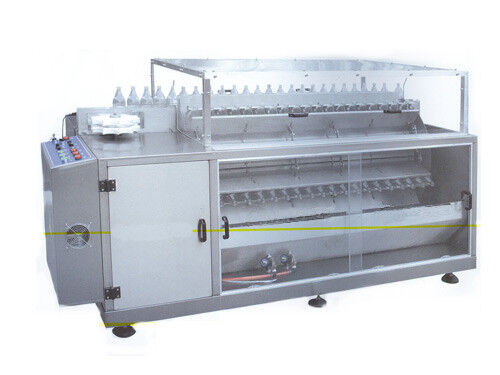

Ultrasonic Liquid Bottle Filling Machine For 2-1000ml Plastic / Glass Bottle

Automatic Rotation Type Ultrasonic Bottle Washing Machine Preparing For Liquid Bottle Filling Machine





Quick Details:



     Bottle Volume: 2-1000ml

     Capacity: 120bpm

     Ultrasonic Washing

     Plastic Bottle, Glass Bottle, Round Bottle, Irregular Bottle





Description:



       LTSX-4 Rotation Type Bottle Washing Machine is the product that our company reformed, researched and produced. It suit to round bottles and irregular bottles with shoulder, washed by couple of water and air(RO water and purified water, purified air) step by step, residual water can be drew out by purified air blowing, Optional ultrasonic device to technical requirements.





Application:



     Food, Chemical, Pharmaceutical, etc.





Specification:



Bottle size 2-1000ml plastic &glass bottles
Power supply 220v 50Hz
Power consumed 1.2Kw
RO water consumption 0.4-0.7t/h 0.1-0 4Mpa
Pure water consumption 0.4-0.7t/h 0.1-0.4Mpa
Purified air consumption 20m3/h 0.3-0.4Mpa
Speed control Frequency conversion adjusting speed
Single machine noise ≤70dB
Weight approx 600Kg
Overall dimension 1450×1200×1500(mm) (L×W×H)
Production capacity 120bpm (depend on bottle size)





Comptitive Advantage:



     1. Simple operation with button control (Touch Screen is available)

     2. Ultrasonic Washing

     3. Whole body stainless steel

     4. Easy changing parts

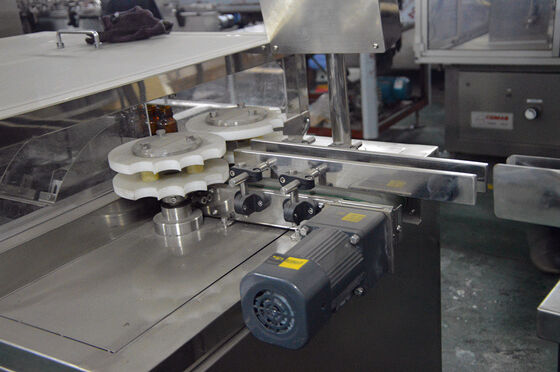

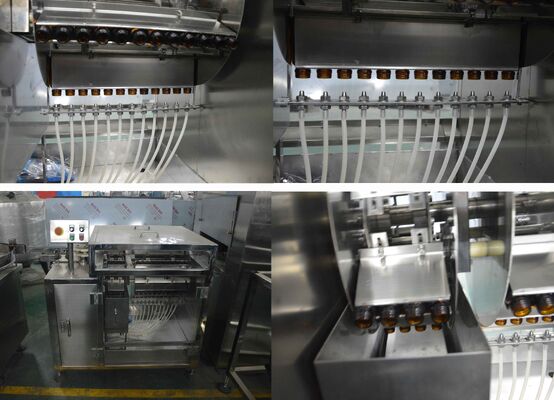

Machine in Workshop: (please referesh if you can not see the photo)

Ultrasonic Liquid Bottle Filling Machine For 2-1000ml Plastic / Glass Bottle 0



Certification:



Ultrasonic Liquid Bottle Filling Machine For 2-1000ml Plastic / Glass Bottle 1
