• Stainless Steel 304 Powder Mixing Equipment With Cylinder Shaped Barrel
Stainless Steel 304 Powder Mixing Equipment With Cylinder Shaped Barrel

Stainless Steel 304 Powder Mixing Equipment With Cylinder Shaped Barrel

Product Details:

Place of Origin: China
Brand Name: LTPM China
Certification: CE, GMP
Model Number: EYH

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 25days
Payment Terms: L/C, T/T
Supply Ability: 25sets/month
Get Best Price Contact Now

Detail Information

High Light:

powder mixing equipment

,

powder mixer machine

Product Description

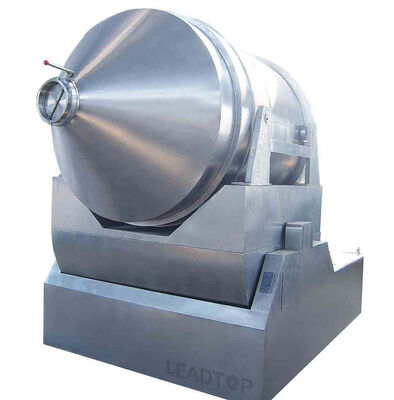

Stainless Steel 304 Powder Mixing Equipment With Cylinder Shaped Barrel



Two Dimensional Powder Mixing Machine With Cylinder-Shaped Barrel





Quick Detail:





Material: Stainless steel 304

Total Weight: 340-12000 kg

Total Motor PowerL 1.15-60kw

Barrel Weight: 60-25000kg

Loading Capacity: 180-12000L

Model No.: EYH

Power Supply: 380V 50HZ Three Phase

Certificate: CE Certificate





Description:





The mixing tank is a cylinder-shaped barrel without any strring decive inside, which makes the self-rotation around its axis and also produces reversible swing movement around its horizontal axis at the same time. Therefore, the target materials inside the barrel coulu be mixed diffusely and moveably. It is features with short mixing time, good uniformity, big output, convenient to discharging, etc. It is for prompt, even and cast mixing.





Applications:





The mixer is suitable for mixing of dry granule materials in pharmaceutics, chemical and foodstuff industries, especially for those in high tonnage.





Specifications:





Model Barrel volume (L) Loading capacity (L) Max Loading Weight (Kg) Turn/Swa (r/min) Total Power (Kw) Overall Dimension (X*Y*Z*Z1) (mm) Y1 (mm) Barrel Dia. (mm) Total Weigh
(Kg)
Barrel weight
(Kg)
EYH300 300 180 90 18/11 1.3 925*905*1480*1360 1460 600 340 60
EYH600 600 360 180 16/9 2.2 1145*1105*1750*1600 1650 750 1150 140
EYH800 800 480 240 10/6 3 1305*1255*1900*1790 1990 820 1600 200
EYH1000 1000 600 300 8/6 3 1375*2255*1910*1770 2950 900 1700 240
EYH1500 1500 900 450 9/5 4.4 1505*2445*2200*2100 3200 1000 2000 320
EYH2000 2000 1200 600 8.5/5 5.2 1635*2445*2255*2120 3250 1130 2600 430
EYH3000 3000 1800 900 7/4.5 7.0 1905*2755*2600*2420 3650 1300 3500 620
EYH4000 4000 2400 1200 7.8/5 9.5 2035*3205*2755*2550 4200 1400 4100 700
EYH6000 6000 3600 1800 7/4 13 2265*3805*3230*2960 5040 1600 6100 1100
EYH8000 8000 4800 2400 6.7/4.5 13 2555*4305*3680*3390 5510 1800 7900 1450
EYH10000 10000 600 3000 6/4.2 18.5 2665*4355*3800*3420 5670 1900 10000 1700
EYH12000 12000 7200 3600 6/4 18.5 2765*4985*4120*3760 6500 2000 13000 2000
EYH15000 15000 9000 4500 6/4 22 3035*4855*4500*4150 6700 2300 15000 2500
EYH20000 20000 12000 6000 5/3.5 30 3295*5155*5000*4500 7050 2500 18000 3100





Competitive Advantage:





1. we have seven technicians who gets passport ready to travel all over world to offer service to you.

2. We have 24hours hot line for Technical Support.

3. We get 18hours internet line for technical support.

4. Video camera in workshop to help you adjust and solve machine problem in working situation.

5. We have Technical Support in below Foreign Cities:

California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho
