Product Details:

Place of Origin: China
Brand Name: LTPM China
Certification: CE, GMP
Model Number: MT-200

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 25days
Payment Terms: L/C, T/T
Supply Ability: 25sets/month
Get Best Price Contact Now

Detail Information

Usage: Round Bottle Label: Single Side Label
Capaciy: 200bottle/min Power: 1.5Kw
Power Supply: 220V 50hz Single Phase (customized) Bacth Number: Ribon Coding Machine Is Available
High Light:

bottle labeler machine

,

self adhesive labelling machine

Product Description

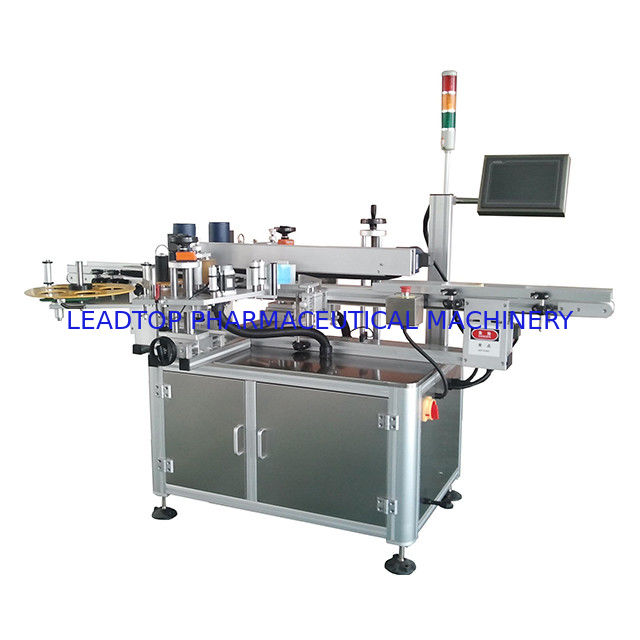

MT -200 Self Adhesive Sticker Labelling Machine For Round Bottle , High Speed



MT -200 Self Adhesive Sticker Labelling Machine For Round Bottle , High Speed



Summary:
MT-200 model vertical type round bottle non-dry tape marking machine, in order to achieve rationalization of production target and design. Labeling process automation, simple operation, the production speed is quick, labeling position, beautiful, neat, For pharmaceutical, chemical and foodstuff trades etc circular vessels labeling.
Working principle:

The machine can packing different objects into labeling machine belt conveyor, by driving a bottle into the bottle conveying institutions, continuous motion by depending on fiber detected after bottle, photoelectric signal transmission to PLC, by PLC output signal processing will lose to the stepping motor, the standard of stepping motor, through the rolling institutions will stick son, tag labeling of objects by labeling machine conveyor belt into the next procedure or containers.

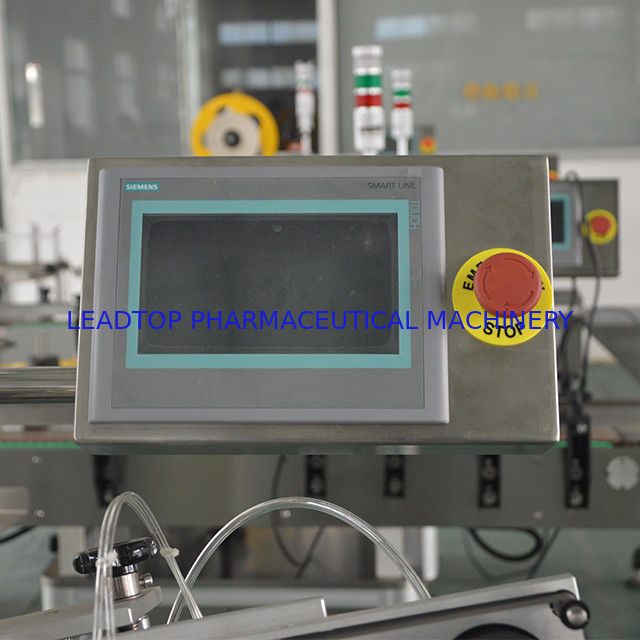

Main machine running adopts stepping motor driver, sets of (Taiwan) PLC control system, sets of (Taiwan) touch screen, keyence fiber (Japan) device etc imported components, gathers numerous leading technology, make it become the industry has the advantage of technology products.

Microcomputer automatic control, interface screen friendly human-machine interface, ingenious mechanical structure, make the operation simple and powerful function, Can realize tag number, counting, set print control, labeling, lack of control, marking, colorless such abnormalities automatic detection and alarm functions, Random capacity and the quantity management label, Adjust tightness labels, The length and tags, Host height and adjust position before, Optional ribbon typewriter one, Labeling and tag with reaction degree detection.

The machine adopts high-quality T6 aluminum and stainless steel SUS304, well made, in conformity with the requirements of GMP.

Main Technical Data:
Driver: Stepping motor
Operation: Right or left
Poster speed: 0-200 PCS/min

Packaging Range:



20 - 100mm diameter

Height 25-350mm

Label size width 10-150mm length 15-200mm
Labeling precision + 1mm (depending on the bottle degree, perpendicular round)
Maximum diameter volume label: dia.300mm
Coil diameter: Dia. 75mm label
Weight: 200kg
Power supply: AC220V 0.5Kw 60HZ
Overall Size: 2000X1300X1500

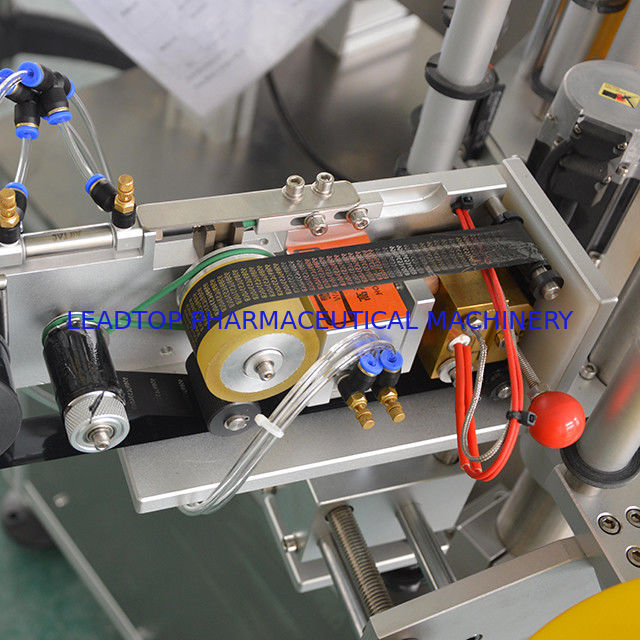

Ribbon Coding machine: HP 260Q
