High Speed Rotary Tablet Press Machine Tablet Compression Equipment ZP-37D

High Speed Rotary Tablet Press Machine Tablet Compression Equipment ZP-37D

Product Details:

Place of Origin: China
Brand Name: LTPM CHINA
Certification: CE
Model Number: ZP-37D

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: In 25 days after receiving the deposit
Payment Terms: 30% TT as deposit and 70% before shipping
Supply Ability: 25 sets/Month
Get Best Price Contact Now

Detail Information

High Light:

rotary tablet compression machine

,

tablet compression machine

Product Description

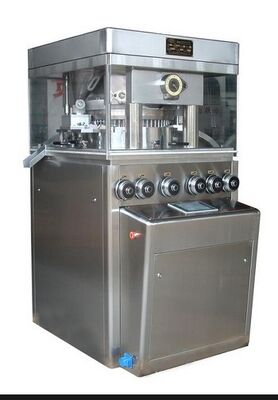

High Speed Rotary Tablet Press Machine Tablet Compression Equipment ZP-37D



Automatic Rotary Tablet Press Machine Model No ZP-37D With Double Press





Quick Detail:



Capacity: 60,000-170,000 pcs/hour

Model No.:ZP-37D

Station:37

Material: Stainless steel 304

Max Diameter Of Tablet:13mm

Max Thickness Of Tablet: 6mm

Totary Speed Of The Turret:14-35RMP

Thickness Of The Die:22mm

Power Supply: 380V 50HZ Three Phase

Certificate: CE Certificate





Description:



1. The material of the machine is made of stainless steel with totally closed, the surface of turntable deal with polished and prevent cross pollution which meet the GMP standard.

2. It is equipped with Organic-glass perspective window for tablet producing observation. Each perspective window could be fully opened and easy for cleaning and maintenance.

3. It is adopts the import Frequen

cy Timing with Electromagnetism Clutch.

4. Driving system is equipped with oil box and running under oil, easy for heat dissipation and wear-resistance.

5. It is equipped with Dust Collector as well, which avoid the dust emission, and recycle to save dust





Applications:



This machine is a double press automatic rotation for shape-pressing equipment, which have the function of press the grain material or powders to be round or irregular shape tablets, such as candy, calcium tablets double-sides with letter printing and etc. which widely suitable for the Industries of pharmaceutical, Chemical, Foodstuff, Plastic Electronic, Powder Metallurgy and so on.





Specifications:



Stations (unit) 37
Maximum compression (KN) 80
Max. Diameter of tablet to be produced (mm) 13
Max. Filling depth (mm) 15
Max. Thickness of tablet (mm) 6
Thickness of the die (mm) 22
The diameter of the circle of the central pitch of upper &lower punches on the turret 320mm
Rotary speed of the turret (rpm) 14-35
Capacity of the tablets (max ten thousand tablets/hour) 60,000-170,000pcs
Area to occupy (mm 2 ) 930x950






Competitive Advantage:



1. we have seven technicians who gets passport ready to travel all over world to offer service to you.

2. We have 24hours hot line for Technical Support.

3. We get 18hours internet line for technical support.

4. Video camera in workshop to help you adjust and solve machine problem in working situation.

5. We have Technical Support in below Foreign Cities:

California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Lahore (Distributor)
