Flat Pouch Rotary 45 Pouches/Min Stand Up Pouch Packing Machine

Flat Pouch Rotary 45 Pouches/Min Stand Up Pouch Packing Machine

Product Details:

Place of Origin: Zhejiang Province,China
Brand Name: LTPM CHINA
Certification: CE, GMP, SGS, BV
Model Number: RotaTop-Series

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export Standard Wooden Case
Delivery Time: 25 days
Payment Terms: L/C, D/A, D/P, T/T, MoneyGram
Supply Ability: 45 sets/month
Get Best Price Contact Now

Detail Information

Working Position: Eight-working Position Pouch Material: Laminated Film PE、PP
Pouch Pattern: W:100-210mm L:100-350mm Filling Scope: 10-5000g( The Screw Attachment Is To Be Changed)
Speed: 10-45 Pouches/min(The Speed Depends On The Product Status And Flling Weight)) Voltage: 380V 3phase 50HZ/60HZ
High Light:

Rotary stand up pouch packing machine

,

rotary flat pouch packing machine

,

45 Pouches/Min Stand Up Pouch Packing Machine

Product Description

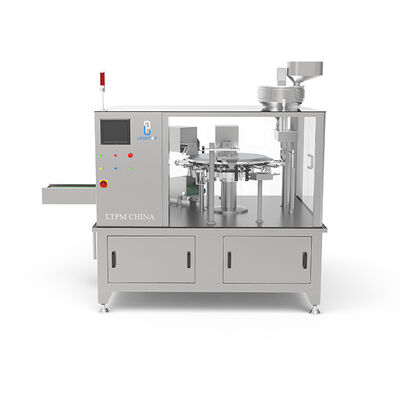

Flat Pouch Rotary 45 Pouches/Min Stand Up Pouch Packing Machine

Stand Up Pouch Doypack Zipper Bag Flat Pouch Rotary Packing Machine

Machine introduction:

Rotary packing machine is developed for premade pouch, stand-up pouch with or without zipper. It is suitable for packing product of powder, irregular shape, thick liquid and liquid, such as gourmet powder, chicken powder, seasoning powder, candy, fruits, nut, pet food, roasted seeds, puffed food, frozen food, small hardware and hand sanitizer.



Option Part of Weighing&Packing System

*Z Type Bucket Elevator--- --------------------------for conveying material( Not for Powder)

*Multihead Weigher( 10head, 14head, 20head...) ---------------for weighing(not powder)

*Screw Conveor & Auger Filler---------------------This is for Powder material Conveying

*Working Platform 304 stainless steel-------------------------------for supporting equipment

*Finished Product Conveyor------------for conveying and collecting of finished product.







Main function:

1. Automatically check pouch open status, it will not fill and seal when pouch is not opened fully. It avoids the wasting of pouch and raw material and save cost.

2. Machine working speed can be adjusted continuously with frequency converter

3. SIEMENS PLC adopted, the control system is easy to operated with friendly HMI interface.

4. Machine will alarm when the air pressure is abnormal and stop working with overload protect and safety device.

5. Machine can work with dual-fill, filling with two types of material, such as solid and liquid, liquid and liquid.

6. Machine can work with pouch width range from 100-200mm, by adjusting the width of clips.

7. Adopting advanced bearing, where no need to add oil and less pollution for product.

8. All the product and pouch contact parts are made with stainless steel or the material according with the food hygienic requirements, guarantee hygiene and security of the food.

9. Rotary packing machine can work with different filler to pack solid, powder and liquid.

10. With pre-made pouch, the pattern and sealing on the pouch is perfect. The finished product looks advanced.

11. Machine can work with complex film, PE, PP material premade pouch and paper bag.



Technical Parameters:

Working position

eight-working position

Pouch material

Laminated film PE,PP

Pouch pattern

stand-up&zipper pouch

Pouch size

W:100-210mm L:100-350mm

Filling Scope

10-5000g( The screw attachment is to be changed)

Weight Accuracy

Package weight ≤ 100g, with an error≤±2% 100 — 500g,with an error≤±1% ≥500G error≤±0.5%

Speed

10-45pouches/min(The speed depends on the product status and flling weight))

Voltage

380V 3phase 50HZ/60HZ

Total power

8.5KW

Compress air

0.6m3/min(supply by user)

Size

1900*1570*1700mm
