Product Details:

Place of Origin: China
Brand Name: LTPM China
Certification: CE, GMP
Model Number: FL

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 25days
Payment Terms: L/C, T/T
Supply Ability: 25sets/month
Get Best Price Contact Now

Detail Information

Batch Time: 10-30minute/bacth Capacity: 300kg
Material Consist: SS304(SS316 Is Available) Working Principle: Powder Mixed With Spay Granulate And Dry Through Hot Air
Application: Powder Control System: PLC Control Or Micro Computer
High Light:

pharmaceutical process equipment

,

pharmaceutical equipment

Product Description

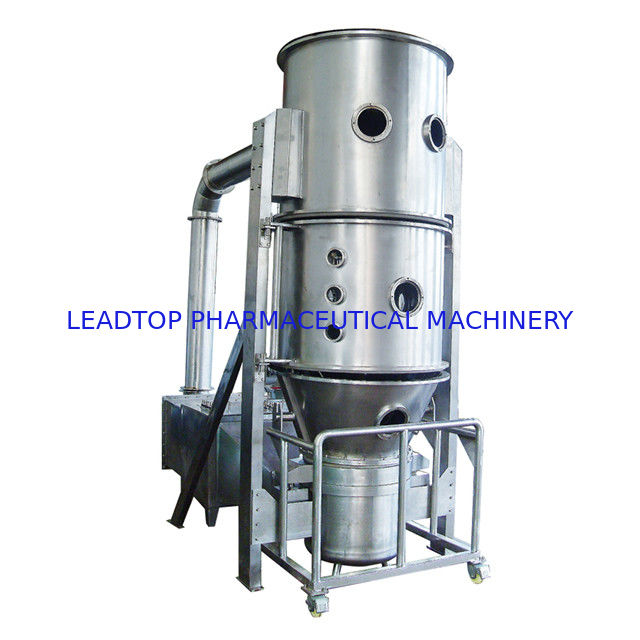

Durable Pharmaceutical Processing Machines Fluidized Bed Dryer And Granulator





Fluidized Bed Dryer And Granulator



Application
Pharmaceutical industry Tablet, capsule, low sugar or no sugar granule of Chinese medicine
Foodstuff Cocoa, coffee, milk powder, juice of granulate, flavoring and so on
Other industries Pesticide, feed chemical fertilizer, pigment, dyestuff and so on
Drying Powder or granule material
Coating Granule, protecting coat of pellet, spare color, slow release film, bowel-dissolve coating, etc.



Features

1. Through powder granulating, the flow property is improved and the dust is reduced.

2. Through powder granulating, its solving property is improved.

3. The mixing, granulating and drying can be completed in one step inside the machine.

4. The operation of equipment is safe because the anti static filtering cloth is adopted.

5. The operation personnel can not be damaged of explosion take place because of the releasing hole.

6. The equipment has no dead corner. Therefore the loading and unloading, quick and light and clean. It can

meet the requirements of GMP.



Technical Parameters:

Item Unit Specific
3 5 15 30 60 120 200 300 500 1000
vessel volume L 12 22 45 100 220 420 670 1000 1500 3000
diameter mm 300 400 550 700 1000 1200 1400 1600 1800 2200
capability min kg 1.5 4 10 15 30 80 100 150 250 800
max 4.5 6 20 45 90 160 300 450 750 1200
fan velocity m3/h 1000 1200 1400 1800 3000 4500 6000 7000 8000 13670
pressure mmH2O 375 480 950 1400
power kw 3 4 5.5 7.5 11 18.5 30 37 45 90
steam consumption kg/h 15 23 42 70 141 211 282 366 451 750
compressed air expenditure m3/min 0.9 1.0 1.1 1.5 3.0 4.0
weight of the main body kg 500 700 900 1000 1100 1300 1500 1800 2500 3500
steam pressure MPA 0.1-0.4
temperature   Adjustable at the range from room temperature to 120
working time min 45-90 decided in accordance with the properties of raw materials
collect rate % ≥99
noise dB(A) ≤75dB (A) during installation, main machine is separated from fan.
size (L×W×H) m 1.0×0.6 ×2.1

1.2×

0.7×2.3

1.25×

0.9 ×2.5

1.6×1.1×2.5 1.85 ×1.4×3

2.2×1

.65×3.3

2.34×1.7 ×3.8 2.8×2.0×4.5 3×2.25×5.0 4×2.8×7.2









Any question please contact us

LTPM China, your best pharmaceutical production solution
