• Customized Antique 10 Ml Dropper Bottle Automatic Labeling Machine 50 - 150 bottles / min
Customized Antique 10 Ml Dropper Bottle Automatic Labeling Machine 50 - 150 bottles / min

Customized Antique 10 Ml Dropper Bottle Automatic Labeling Machine 50 - 150 bottles / min

Product Details:

Place of Origin: China
Brand Name: LTPM China
Certification: CE, GMP
Model Number: MT

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 25days
Payment Terms: L/C, T/T
Supply Ability: 25sets/month
Get Best Price Contact Now

Detail Information

Color: Silver Material: Ss304
Weight: 300kg Dimension: 2200*1200*1800mm
Packing Speed: 50-150bottles/min
High Light:

bottle labeler machine

,

automatic round bottle labeling machine

Product Description

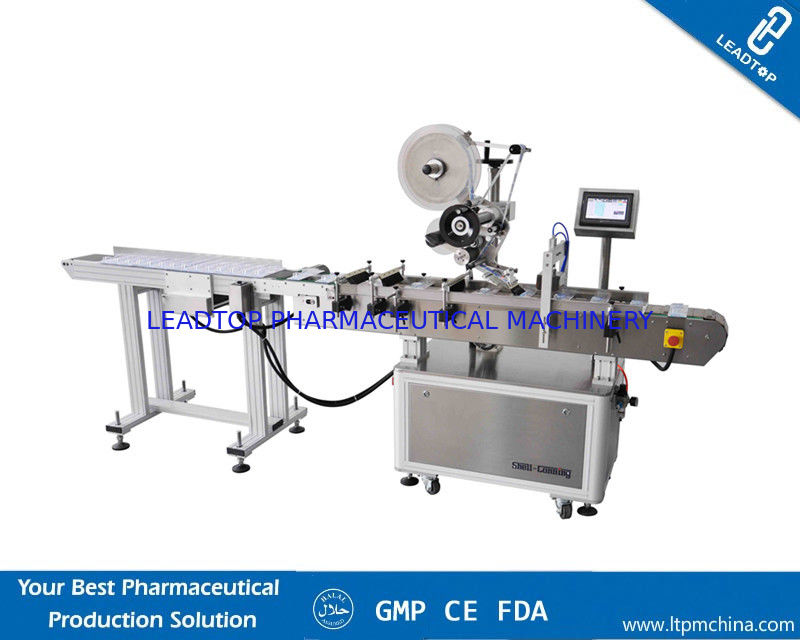

Customized Antique 10 Ml Dropper Bottle Automatic Labeling Machine 50 - 150 bottles / min



Customized Antique 10 Ml Dropper Bottle Automatic Small Golf Ball Labeler





Quick Detail:





Certificate: CE Certificate

Running speed:: 50-130bottle/min

Model No.: MT-50

Weight:300kg

Overall Size: 2200×1000×1800mm

Material: Stainless steel 304

Driving mode: Servo motor





Description:





1. Imported servo motor, the speed of send label is fast;

2. Touch-screen man-machine interface Operating system, simple and efficiently;

3. Adopt mature technology PLC control system, operation is stable and high-speed;

4. Input type roll label device, make the label attached more solid;

5. The whole machine made of S304 stainless steel and anode handling superior aluminum. Never rust, high corrosion resistance;

6. No object not labeling, automatic alarming when without labels or no labeling





Applications:





- Body is built with stainless steel, steel construction stable and not rust.

- The whole machine used quick release type of construction. In order to change and adjustment easier.

- Centralized lubricating system for simple and effortless on maintenance, lubrication and cleaness.

- With photo-sensors to detect label output and aotomatically self-regulated production speed.

- Used stable and reasonable of compiling program. It can be suitable for operation 24 hours.

- The bottle working mode is rotary input and output type.

- Equipped with the Torque limiter which prevent the torsion range abnormal situation and reduce accident.

- Roller coating, gluing balance and glue saving.

- Alarm system: Caution light & buzzer for out of label, label break and door open.

- Cut label system: Used multiple cure of cut system organization. (It is not quick-wear part.)

- The machine production speed is controlled by the machine input bottle signal. It is automatic transmission.

If input bottles too many, machine will increase speed.

If there is no input bottle, machine will change to low speed.

If output bottles too many, machine will change to low speed.

If output bottles are smooth, machine will increase speed.





Specifications:





Production 50-130bottle/min
Label Specifications Glassine paper, adhesive sticker opaque label
Labeling accuracy ±1mm (subject to the roughness of the plane)
The application of label Object customizing
The application of label Height 20-70mm Length 25-120mm
The inner diameter of label Roll 76mm
The outer diameter of label Roll 350mm
Driving mode Servo motor
Power of motor 500w
Voltage AC 220V 50/60Hz Single phase
Overall dimension 2200×1000×1800mm





Competitive Advantage:





1. We have seven technicians who gets passport ready to travel all over world to offer service to you.

2. We have 24hours hot line for Technical Support.

3. We get 18hours internet line for technical support.

4. Video camera in workshop to help you adjust and solve machine problem in working situation.

5. We have Technical Support in below Foreign Cities:

California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho





The sample service

1.We can send you the video of the running machine.

2.You are welcome to come to visit our factory,and see the machine running.

3.If we get the permission of the customers who have bought the machines from us,we can provide you their contact information and you can go and visit.

Customized service

1.We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our

professional suggestion,as you know,we have been in this industry for many years.

2. We can offer free technical support and consultation such as design your factory,draw the factory layout and so on.

After-sales service

1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly

2.When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.

3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.

4.We provide one year warranty with spare parts free
