Product Details:

Place of Origin: ZhangJiang China
Brand Name: LTPM
Certification: CE, GMP, SGS, BV
Model Number: DPH

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 30,000 - 45,000
Packaging Details: Wooden Case
Delivery Time: within 35days after receive your deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram,
Supply Ability: 30 set per Mouth
Get Best Price Contact Now

Detail Information

Item: DPH-220 High Speed Roller Type Blister Packing Machine For Alu PVC / Alu Alu Blister Max Cutting Speed: 180 Times/min
Max Forming Depth: 12 (mm) Max Forming Area: 180×220(L×W) (mm)
Non-toxic PVC Thickness×Width: (0.25-0.35)×220 (mm) Aluminium Fiol PTP Thickness×Width: 0.02×220 (mm)
PVC OD Of Reel: <φ400 (mm) PTP OD Of Reel: <φ250 (mm)
PVC & PTP Dia Of Reel Core: φ70~76 (mm) Weight: 2350 (kg)
Installed Power: 14kw 380V/ 50Hz Overall Dimensions: 3130×975×1850(L×W×H) (mm)
High Light:

automatic blister packing machine

,

tablet blister packing machine

Product Description

Alu PVC / Alu Alu Blister Machine , Blister Pack Sealing Machine

Alu PVC / Alu Alu Blister Machine , Blister Pack Sealing Machine



  • Simple Introduction

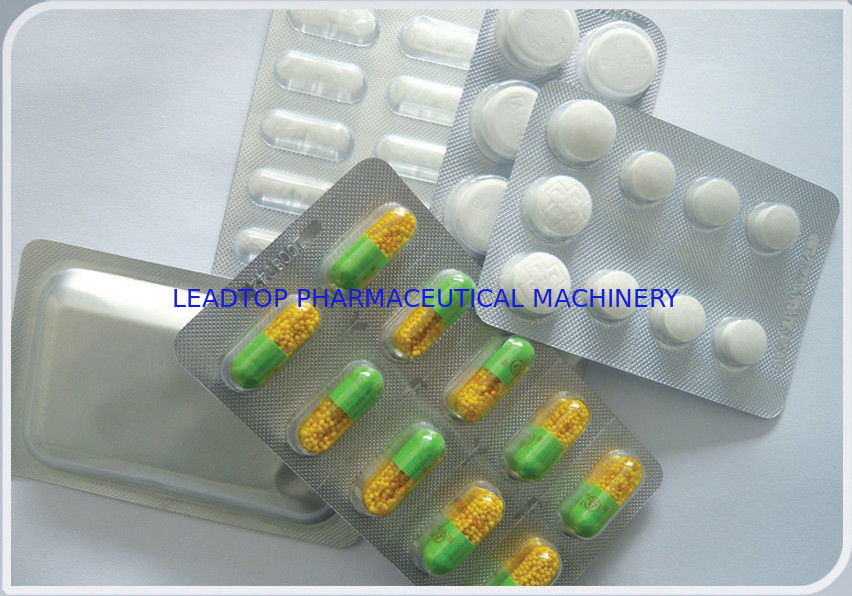

This machine is at high precise and the latest roller and plate type blister packing machine, developed by our company. It applies to pharmaceutical industry, food industry, medical appliance and electronically area. It is suitable for packing capsules, tablets, milk pieces, candy, electronically element and similar material, with sealing packing in aluminum PVC, paper PVC Blister Package.

  • Technical Data

Model

Unit

DPH-220

Max cutting speed

times/min

180

Max forming depth

mm

12

Max forming area

mm

180×220(L×W)

Non-toxic PVC Thickness×Width

mm

(0.25-0.35)×220

Aluminium Fiol PTP Thickness×Width

mm

0.02×220

PVC OD of Reel

mm

<φ400

PTP OD of Reel

mm

<φ250

PVC & PTP Dia of Reel Core

mm

φ70~76

Weight

kg

2350

Installed Power

kw

14kw 380V/ 50Hz

Overall Dimensions

mm

3130×975×1850(L×W×H)





  • Our Services



1. we have seven technicians who gets passport ready to travel all over world to offer service to you.

2. We have 24hours hot line for Technical Support.

3. We get 18hours internet line for technical support.

4. Video camera in workshop to help you adjust and solve machine problem in working situation.

5. We have Technical Support in below Foreign Cities:

California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Lahore (Distributor)

DPH-220 blister packing machine is a machine adopts in the lead position of quality, good capability, all-round function, good reliability and high productivity. It adopts auto-controlling technology and uses new material, new craft, and new technology to make the structure more reasonable.
DPH-220 combines  the  advantages  of  good  forming  of  flat  pattern  packing machine  and high  speed of  roller pattern machine. The forming could be done in low speed through reasonable speed matching. And the sealing station, compressing station and punching station could achieve a speed of 120 cutting per minute. High speed is with perfect function
This series machine is at high precise and the latest roller and plate type blister packing machine, developed by our company. It applies to pharmaceutical industry, food industry, medical appliance and electronically area. It is suitable for packing capsules, tablets, milk pieces, candy, electronically element and similar material, with sealing packing in aluminum PVC, paper PVC Blister Package.










  • Machine Details

Alu PVC / Alu Alu Blister Machine , Blister Pack Sealing Machine 1

Alu PVC / Alu Alu Blister Machine , Blister Pack Sealing Machine 2Alu PVC / Alu Alu Blister Machine , Blister Pack Sealing Machine 3Alu PVC / Alu Alu Blister Machine , Blister Pack Sealing Machine 4
