• 380V 50HZ Three Phase PVC / BOPP film Automatic Packaging Machine With PLC Control
380V 50HZ Three Phase PVC / BOPP film Automatic Packaging Machine With PLC Control

380V 50HZ Three Phase PVC / BOPP film Automatic Packaging Machine With PLC Control

Product Details:

Place of Origin: China
Brand Name: LTPM China
Certification: CE, GMP
Model Number: TMP

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 25days
Payment Terms: L/C, T/T
Supply Ability: 25sets/month
Get Best Price Contact Now

Detail Information

High Light:

automatic packaging machine

,

packing machine for food products

Product Description

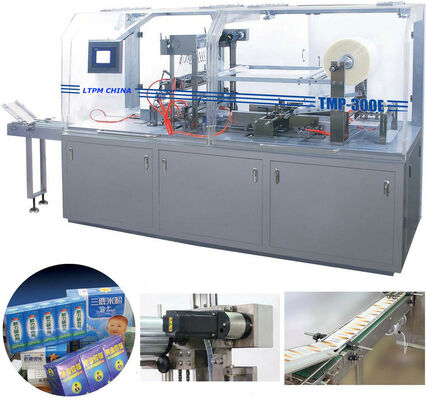

380V 50HZ Three Phase PVC / BOPP film Automatic Packaging Machine With PLC Control





380V 50HZ Three Phase PVC / BOPP film Automatic Packaging Machine With PLC Control





Quick Detail:





Quick Detail:

Model No.: TMP

Capacity: 30-150 packs/min

Package material: BOPP film, PVC film, etc

Weight: 750-1050kgs

Power Supply: 380V 50HZ Three Phase

Certificate: CE Certificate







Characteristics:


1. Mitsubishi Servomotor, Touch screen and PLC control system make operating and adjusting easily. Man-machine interface from abroad,easily operate,alarm diaply
2. Photoelectric follow-up: color cover film or optical film can be used for packaging, reduce cost and upgrade the products.
3. With assembling moulds, they can be replaced easily and can be used on several machines. The mould is equipped with a cooling system.
4. An automatic code printing system can be equipped as per user's requirements for product packaging.
5. According to user's requirements for product packaging, nitrogen or other protective gases can be filled into the package after vacuuming.
6. With a world first–class vacuum pump made in Germany, advantages include high degree of vacuum, steady quality and good durability. Vacuum pump from Germany.
7. With clamping chains imported from Germany, this machine is applicable for stretch shaping of soft films, hard films and semi-hard films with different thickness.
8. Has a scrap recycling system, good environment and health can be maintained.
9. With advanced transverse and longitudinal cutting system, making change easy and simple.

10. Phase failure protection :Loss of phase protection make safety when losselectric power

11.Servo drive sysytem :Orientation exactly,more safe.

12. Creepage protection: Make sure the safety of operator.





Applications:





→The machine is mainly suitable for various box products in medicine, food, health products, tea, cosmetics, gifts, stationery, audio and video products and other industries in the piece or pieces (set packing) packing, can replace the box in the paper, and can reduce the packing cost about 95%. The machine can also play anti-counterfeiting, moisture-proof, dustproof effect, and improve the grade of products, increase the added value of the products. Machinery for the production of the machine can be linked to with the cartoning machine, packing machine etc..







Specifications:





Model TMP-130 TMP-200 TMP-300
Package material BOPP film, PVC film, etc
Production capacity 30-150 packs/min 30-100 packs/min 5-30 packs/min



Packaging size

Length: 60-130mm

Width: 40-100mm

Height: 10-40mm

Length: 60-200mm

Width: 40-120mm

Height: 10-60mm

Length: 50-300mm

Width: 40-250mm

Height: 10-90mm

Power of supply AC220V 50Hz 3Kw AC220V 50Hz 3.5Kw AC380V 50Hz 6.5Kw
Weight 750KGS 900KGS 1050KGS
Outline dimensions 2400×700×1500mm 2500×1000×1500mm







Competitive Advantage:





1. we have seven technicians who gets passport ready to travel all over world to offer service to you.

2. We have 24hours hot line for Technical Support.

3. We get 18hours internet line for technical support.

4. Video camera in workshop to help you adjust and solve machine problem in working situation.

5. We have Technical Support in below Foreign Cities:

California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho
